How to Make Your Equipment Look Like a Million Bucks!

There's a lot of surplus equipment out there that can be used as the basis for a homebrew project. Here's a way to make it look more professional.

For example, let's take this...


...and make it look like this:


It's actually very easy. Here are the steps I follow.

First, For the panel, I measure its dimensions and the locations of all holes I want to use. Then, using an electronic drawing program (I use Adobe Illustrator, but others I know use Autocad), I accurately place all hole locations as well as any labels I want to add on my panel drawing.


I then print out the panel drawing. If the panel is larger than, say, 8.5 x 11 inches, you'll need to create a "B" size sheet (11" x 17"). My printer does not print B-size sheets, so I instead print two "A" size sheets, trim their edges, align them (note the alignment marks in the overlap area), and then tape them together so that they form a larger sheet. If you don't have a light-table for accurately aligning them, a window works fine...


I then go to the local copier store (here it's the "Kinko's" chain) where I copy my "composite" drawing onto a B-size sheet (so that it's a single piece of paper, not two taped together).

(If you can squeeze in an extra panel, do it, just in case you "goof.")

I then laminate it (the local Kinko's has a laminator).


And I cut out the panel overlay (and any large holes) with an Xacto knife...


Finally, I glue my overlay to the original metal panel using "Adhesive 77" spray adhesive (manufactured by 3M) and cut out the remaining holes, using the holes in the original panel to guide my Xacto knife.

And voila!

[Many thanks to Dick, W1QG, who taught me this technique. His great looking panels on the equipment he built were an inspiration.]

Converting an HP Counter into a Nixie Tube Clock

Hmmm...I had an old HP 5233L nixie tube counter with 6 nixie tube digits gathering dust in the corner. What to do with it...?

Let's see, six digits...why not make it into a clock? After all, nixie tube clocks are pretty cool. And the counter came integrated with almost everything I needed: power supply and even a case with nicely milled holes. Mechanical work would be minimal, which defines my ideal project!

And as a nice bonus, there was also a back-panel BNC input for an external frequency reference, so I could use my GPS-locked frequency standard to keep the clock's time from "drifting" over time.

Conceptually, I figured it should look something like this (this includes a simple method for setting time):

Block Diagram

(Click on image to enlarge)

Pretty straight forward. But there was a small complication: I didn't have schematics for the 5233L.

This really didn't prove to be much of a problem. HP used the same nixie "single-digit" decimal counter plug-in module in a variety of its counter products. And I did have a manual for an HP 5232A. A quick glance revealed that it had the all-important schematic for the decimal counter module (HP part number 5212A-4A -- and although my counter used 5212L-4A modules, the 5212L-4A design seemed to be very close (if not identical) to that of the 5212A-4A)).

That manual, plus some scope probing of various signals within my 5233L counter, told me pretty much all I needed to know.

Some things I needed to do were:

1. Change two of the counter modules to count from 0 to 5 (instead of 0 to 9), so that minutes and seconds would each count from 0 to 59, instead of 0 to 99.

2. Add a reset circuit to the two "hours" digits such that, if the hour count increments to '13', it immediately resets the two hour digits.
3. Modify the Hour LS (Least Significant) digit to reset to '1' instead of '0' (so that hours count from '1' to '12'.
4. Disable the "Storage" feature of the Decimal Counter modules so that we can see the module counting.


So first, to count from 0 to 5, the 5212L-4A assembly(or 5212A-4a, or other variants) can be modified as follows:

1. Remove R45, R50, and C10
2. Change C11 from 200 to 470 pF
3. Move R59 from CR12 to CR11

If you're trying to understand how the decimal counter circuit works from its schematic, note that it counts per the following pattern:

D C B A
0 0 0 0 (0)
0 0 0 1 (1)
0 0 1 0 (2)
0 0 1 1 (3)
0 1 1 0 (4)
0 1 1 1 (5)
1 1 0 0 (6)
1 1 0 1 (7)
1 1 1 0 (8)
1 1 1 1 (9)

So, to count from 0 to 5 instead of from 0 to 9, we can use the transition of B from 1 to 0 to set C to 0. And D must be always kept at 0.

(Important schematic note: Q1/Q2 control bit A, Q3/Q4 control bit B, Q5/Q6 control bit D (not C!), and Q7/Q8 control bit C (not D!)).


For item 2, the Hours Reset circuit needs a few more parts. I mounted them under the counter chassis.

(Click on image to enlarge)

For item 3 -- to modify the HOURS LS digit decimal counter module (HP Assembly 5212(x)-4A) to reset to a count of '1' instead of '0', simply modify that module so that R23 connects to the base of Q2 instead of to the base of Q1.

And finally, for item 4:

The "Transfer Line" signal to the counter modules controls the modules "storage" function (necessary for a counter to maintain a stable display while the modules are counting). But there's no reason to use a storage function when operating as a clock -- we can simply view the count while it's incrementing, and it makes the modification simpler

To disable the "Transfer Line", I cut the wire from the driver that drove pin 5 of the Decimal Counter card-edge connectors. This line will then float at about-12V, and the storage feature of the Decimal Counter modules will be disabled).

So...that's essentially it!

[I did add various switches and buttons to give me some functions that I wanted (such as turning off the display, but continue running the clock, to save on "wear and tear" of the nixies). But the modifications listed above are the main mods to the basic counter function.]

Here's the top view of the modified counter...

...with the modified decimal-counter modules:

And a view under the chassis. The HOURS reset circuit is wired between two of the edge connectors towards the right.

The counter, before I made an overlay for the front panel...

...and after:

(Martini time!)

From left to right, front panel controls are:

1. Toggle Switch: Mode, RUN/SET-Time

2. Push Button: Increment clock when in SET-Time mode

3. Toggle Switch: FAST/SLOW increment speed when in SET-Time mode

4. Rotary Switch, 3 Position. Selects Display Format: H:M:S, H:M, Display OFF (but clock still counting)
5. Push Button, Reset SECONDS count
6. Pot with Power-On switch. Only the power-on switch is used.

Other Notes:

1. HP Manuals are great. I've always found their "Principles of Operation" section to be an excellent description of how their equipment operates -- very useful and well worth checking out.

2. To use a 5212(x)-4A module in slot A19 of the 5233L counter, clip wire going to pin 8 of that slot's card-edge connector. (I no longer recall which module was originally in this slot).

3. You can use the "decimal point" neon lamps in the modules as separators to differentiate between hours, minutes, and seconds digits (refer to photo of my counter).

[Note: the 5212L-4A modules in the 5233L counter do not have neon lamp decimal points within the modules themselves (unlike the 5212A-4A module). Instead, the neon lamps are mounted on a separate small PCB that runs underneath the modules, next to the front panel.]

4. You could probably make this a 24-hour clock as follows:

• Do not modify the Hours LS digit to reset to 1.
• Change the Hours Reset Circuit to use the following 2 bits instead of the 3 bits shown in my schematic above:


Hours LS Digit pin 13

Hours MS Digit pin 9

(I haven't tried this, so take this recommendation with a grain of salt.)

5. Pin 7 is the Clock input pin for a 5212(x)-4A module. It is to this pin of the first module (the least-significant digit of the "seconds" modules) that you connect the 1 Hz time reference (and the faster clocks, when in SET-Time mode).

6. In an HP counter you should find a number of identical divide-by-10 modules that are used to divide down the time-base reference frequency (HP p/n 5212A-65C). It is on the card-edge connectors of these modules that you can find the 1Hz, 100Hz, and 1KHz signals (as well as others, should you need them).

Note 1: These boards have pin 7 as their input and pin 5 as their divide-by-10 outputs.

Note 2: Although my block-diagram above has 1 KHz as the "fast" set-time frequency, I might have actually 10 KHz.

7. After I'd mucked around with making an overlay and installing it on the front panel, the counter started "double-counting" (it would increment twice in one second -- on the rising and the falling edges of the 1 Hz clock). It turns out that CR9 on the first nixie tube module had opened up. HP's p/n for this part is 1910-0015, but unfortunately it didn't list the manufacturer's part number. I replaced it with a 1N4148 -- and although this new part is silicon, rather than germanium of the original diode, it fixed the problem.

8. A note regarding my "Reset Seconds" pushbutton. This button simply zeroes out the MS and LS seconds digit (and it also keeps the other digits from counting). But if one does this when the seconds count is greater than '19', the minutes count will increment by one. This isn't a big deal for me, and actually, it's kind of useful when setting time. Here's what I do:

1. I'll run up the time to the current time (per WWV), making sure that there are at least 19 seconds on the clock.
2. Then I'll flip the RUN switch to RUN and depress and hold the Reset Seconds button. This will set the clock to the next minute and zero the seconds.

3. I then wait, with button depressed, until WWV hits the minute mark before releasing the button.
4. The clock is now within a fraction of a second of WWV!


9. The +20VDC rail within my counter was way off (it read +31 VDC). Some probing revealed that a couple of transistors, as well as a zener diode, in the voltage regulator circuit had blown. The two transistors were both germanium PNP parts (one was an HP 1850-0062, which crosses to a 2N404A, and the other was an 1850-0105, for which I cannot find a cross reference). I replaced these both with 2N3905 transistors (PNP silicon). I replaced the blown zener with a 6.8 volt one, and, when finished, the voltage read +19.98 VDC. The voltages across the 2N3905 transistors are well within their range, and they aren't getting warm, so I believe everything should be copacetic.

Final note...this posting was written not to give detailed instructions for modifying an HP counter to be a clock, but rather to generate ideas and inspiration. If you have an old HP counter kicking around somewhere, consider giving it a try!

- Jeff, K6JCA

Improving AM Performance of the Heathkit MT-1 Cheyenne Transmitter

[Note (10 July 12):  The schematic shown below has an error in it.  The 1uF cap paralleled with the 25K pot added to the circuit should connect between pin 8 (cathode) of the 6DE7 and ground, not between pin 5 and ground.  (I would fix this drawing, but I no longer have the original).  - Jeff]

[Update (2 January 2010): New information on my Cheyenne can be found here]

I picked up this transmitter at a swapmeet earlier this year. Although the front panel was in nice condition, the topside of the chassis itself had oxidized quite a bit (as had the cabinet, which was in dire need of rust removal and repainting), and it was not very appealing. Never the less, the price was right, and I thought it might be a fun project to get on the air during the cold winter months!

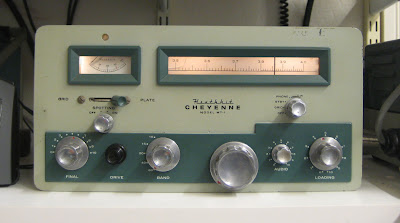

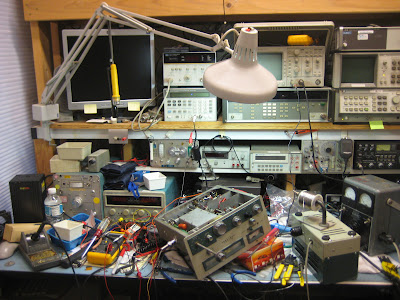

The Cheyenne -- case removed for repainting and
needing an original knob (hint hint) for the Drive control.
(Click on image to enlarge.)

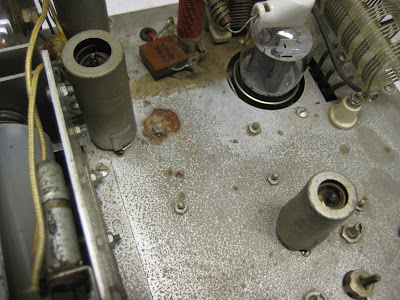

Hmmm...under the hood, not so pretty

The Heathkit Cheyenne transmitter was a mobile AM and CW transmitter that Heathkit marketed in the late 50's and, I believe, early 60's (its matching receiver was the Heathkit Commanche (MR-1)). With a design including a single 6146 PA, 12AX7 Mic amp, and 6DE7 as a "controlled carrier" modulator, it is similar (although not identical) to the later DX-60 series transmitters.

I powered up the transmitter with an HP-20 power supply and quickly discovered that its audio in AM mode left quite a bit to be desired -- noticeable distortion and a restricted audio passband. So I wondered...what could I do to improve its performance?

Well, the first thing to do: check to see if someone else has already been down this path. Unfortunately, a google search revealed no internet articles for improving the Cheyenne. But, because of the similarities between the Cheyenne and the DX-60, I wondered if I could apply any of the DX-60 modification articles to the Cheyenne...

First Steps...Make the Cheyenne more like a DX-60...

Electric Radio magazine has several very interesting articles by Bill Breshears, WC3K, on improving the DX-60 audio. I thought they might be a good starting point for modifying my Cheyenne, but to do so, I'd first need to correct those few differences between the Cheyenne's audio/modulator stages and the DX-60's stages.

Upon comparing the Cheyenne schematics with those for the DX-60B, the significant differences in the modulator section seemed to be:

1. The DX-60B's 6DE7 Cathode Follower has a 33K ohm resistor from its cathode (pin 9) to ground. This resistor was lacking in the Cheyenne (and indeed, its lack prevents the AC signal on the Cheyenne's cathode-follower cathode from going below about 50 VDC).
2. The grid of the first stage of the DX-60B's 6DE7 modulator (pin 7) has a 22 Meg ohm resistor to ground, compared to the Cheyenne's 10 Meg, and this grid is driven by the previous 12AX7 stage via a 5 nF cap, instead of a 510 pF cap in the Cheyenne.
3. The DX-60B's PA screen voltage is driven by the 6DE7 Cathode Follower through a 47K ohm resistor paralled with a 0.1 uF cap. The Cheyenne uses a 10K ohm resistor and a 0.25 uF cap.

I incorporated the changes in first two items above (although I used a 6.8 nF cap in lieu of 5 nF in step two, because that's what I had in the junk box). I left the third item for later, until I could incorporate the Carrier-Level adjustment pot that WC3K described in his articles.

One of my goals was to drive my AL-811 linear amplifier with the Cheyenne. I don't feel comfortable running this amplifier in AM mode at more than about 100 to 120 watts carrier output power. For this level of power output from the linear, I needed the Cheyenne's idle-carrier power output to be to be in the range of about 9 watts or so.

I initially incorporated the 47K ohm resistor in step 3 above (keeping the cap at 0.25 uF) and added a 25K ohm pot in series with it to the PA Screen Grid (the 0.25uF cap paralleling both) -- similar to the carrier control pot described by by WC3K in his DX-60 mods. Unfortunately, I felt I had a bit too much drop in power, and I instead replaced the 47K with the original 10K. (This would later change again. See below...)

The new pot (mounted conveniently in the rear-panel's Key Jack hole (after all, who needs a key for AM operation?) allowed me to easily adjust carrier level. But during testing I wasn't satisfied with audio performance -- there was a still a bit of "fuzziness" on the audio (pointing to distortion) that bugged me.

Examining the audio chain, it became quickly apparent that part of the problem was with the 6DE7 "controlled-carrier" modulator itself. This modulator adjusts the carrier level such that the carrier level is low for low-level signals and higher for high-level signals. To accomplish this "dynamic" carrier-level adjustment, the first stage of the 6DE7 modulator, in addition to being an AC amplifier, "clamps" the input AC signal on its positive peaks, thus causing an additional DC voltage to be impressed across the coupling cap (that couples the signal from the second 12AX7 stage to the input grid of the modulator). This DC voltage is proportional to signal level and thus drives the modulator grid (6DE7 pin 7) more negative with higher audio levels.

As this grid is biased more negative (relative to the grounded cathode), the tube conducts less, reducing the DC plate current. The plate voltage goes up, thus raising the grid voltage on the next stage (cathode-follower) and consequently, of course, its cathode voltage.

As this cathode goes up, the PA Screen Grid voltage goes up, and more carrier appears at the output.

BUT -- the key here, and the source of the distortion, is the clamping action at the grid of the first 6DE7 section. This clamping action essentially flattens the positive peaks of the audio signal at this grid, which in turn results in flattening of the "troughs" of the modulation on the output RF signal.

This flattening of the audio signal is easily observable at the 6DE7 with a scope (monitor the plate of the first stage, for example), and is quite obvious on a 1 KHz test signal. Not good. My rule of thumb is...if you can see the distortion, you can hear it.

I also had a problem in which, as I tried to adjust the Cheyenne's audio level towards 100 percent modulation, I'd get compression (i.e. distortion) on modulated RF envelope "peaks". Again, this was readily apparent by comparing the modulation on the RF signal with the audio signal driving the modulator.

Here's photo showing both of these two distortion mechanisms (exaggerated to make it clearer) . The top trace is the modulator output. You can see the clipping on the largest negative peak due to clamping by the modulator input grid. The bottom trace shows peak compression on the output RF envelope, which you can see by comparing the different levels of the positive peaks of the modulator output with the peaks of the RF envelope -- they're all the same level!



The Next Step...Improving the Cheyenne's Audio...

The fuzziness on the audio was just enough to make me want to keep working on the transmitter. One source of this distortion, as discussed above, was from the clamping action of the "controlled carrier" modulator in order to dynamically adjust carrier level.

Hmmm...suppose I eliminated this clamping action and thus the distortion that it created? Would audio be improved?

Why not? I only needed a carrier to be somewhere in the range of 8 to 12 watts to drive my linear. There's no reason why the 6146 PA in the Cheyenne cannot handle this. In other words, why not remove the "controlled-carrier" feature of the modulator (and thus the distortion that it introduces) and keep the carrier at a fixed level?

And I wanted the carrier level to be adjustable so that I could adjust the level to give me my 100 watt "sweet-spot" output from my linear.

One way to get around the "control carrier" feature is to bias the first stage of the 6DE7 modulator so that there is a fixed negative grid-to-cathode voltage that is large enough to prevent clipping on the positive peaks of the incoming audio, yet provide sufficient carrier to drive the linear. I already had a 25K pot mounted on the back panel of the chassis that I had intended to use to adjust carrier level (and had been wired in series with the original 10K power resistor to the PA screen grid -- see discussion above). I wired it instead into the cathode of the first stage of the 6DE7 so that I could adjust its operating point.

Through a process of iteration, I adjusted the PA screen grid resistor value and the position of the 25K pot so that, for the carrier output power that I wanted (8-10 watts), the cathode of the first 6DE7 was at a high enough voltage that full-modulation audio wouldn't be clamped by the grid. Thus, the PA screen grid resistor (from V6 pin 9) was changed from the original 10K ohms to 50K ohms. Although I used a robust power resistor (it was in the junk box), there's no reason why, say, a 2-watt resistor couldn't be used. And you can play around with the value of this resistor -- lower values of resistance will increase the maximum carrier power, while higher values will lower the maximum carrier power (maximum carrier power occurs when the 25K pot is set to its maximum resistance).

[Important Note: there's a trade-off when selecting the value of the PA screen resistor: for a given carrier output power, lowering the PA screen grid resistor value means that the resistance of the 25K pot in the cathode of the first 6DE7 section must also be lowered to maintain the same carrier output level. This in turn will bring the cathode voltage closer to the grid voltage (which is essentially at 0 volts), which means that it's more likely there will be audio distortion introduced at this 6DE7 grid due to grid "clamping" the positive peaks of the audio signal. I found that a 50K ohm PA screen grid resistor worked well for my application.]

I found that the value of the pot is about 8K-9K ohms for about 9 watts carrier (no modulation) RF output from the Cheyenne. Given this value of resistance, I added a 1 uF cap in parallel across the pot to bypass it for audio frequencies. (Note: This cap can be made larger, if it's desirable to run the Cheyenne at lower power (and thus a lower potentiometer resistance, which means you need a larger cap to maintain the low-frequency cutoff), but increasing its value will also increase the amount of time that it takes for this stage to reach its bias point each time PTT is pressed.)

By the way, with these mods made and the Cheyenne set for about 9 watts carrier output (no modulation), I measure the following DC voltages during Transmit:

• V6.5: 6 volts (6DE7, first cathode)
• V6.2: 110 volts (6DE7, second grid)
• V6.9: 200 volts (6DE7, second cathode)
• V4.3: 52 volts (6146, screen grid)

These changes gave me the ability to control the output carrier power from about 4 watts to about 12 watts. Note -- at low powers there may still be some peak flattening at the grid to the first 6DE7 stage (this occurs when the cathode-grid bias voltage is less than the audio peak voltage at the grid), but I've found that there's no limiting when the 25K pot is set to give me 8-12 watt carrier power output.

OK! Now that I had the distortion reduced, I next tackled the frequency response, which was a bit too restricted in the stock Cheyenne.

This was accomplished (in addition to the changes above) simply by :

1. Changing the 0.001 uF cap feeding the grid of the first 12AX7 stage to 0.01 uF.
2. Changing the 510 pF cap feeding the Audio Level pot (from the plate of the first 12AX7 stage) to 0.01 uF.

This gave me an audio passband with -3dB break-points at 100 Hz and 5 KHz.

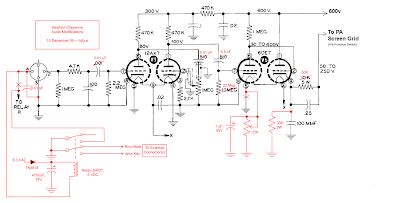

The new schematic:

(Modulator Modifications -- Click on schematic to enlarge...)

[10 July 12 -- Please note that there is an error in this schematic!  The 1uF cap paralleled with the 25K pot should connect between pin 8 of the 6DE7 and ground, not pin 5.]

Other problems:

1. 6.3 VAC reading low on DVM at the terminal strip: only about 5.5 VAC (causing the relay to chatter):

• Bypassed the fuse in the filament line with a wire soldered to the fuse-holder's terminals (this fuse is not needed, after all, the power supply is fused, and this fuse added a few additional tenths of a volt of voltage drop).
• Cleaned the Function switch contacts.

2. The 0.02 uF cap attached to V6 pin 1 (600v bypass) "popped." Replaced.

3. AC Hum on AM signal which gets louder as mic gain is increased. The PTT signal of the Cheyenne's mic jack directly keys the Cheyenne's relay, which is powered by 6.3V AC. A mic with wired to a 4-pin plug to mate with the Heathkit mic jack shouldn't have an issue with this, because, assuming the mic and its cable have separate grounds for the PTT return and the audio return.

Unfortunately, a number of my mics have common PTT and audio grounds (and are terminated with PJ-068 plugs), which means that the 6.3VAC on the PTT line runs on the same ground line as the audio return and thus contaminates the audio signal with AC hum.

I really didn't want to rewire a mic with a Heathkit-compatible plug -- I preferred to keep them terminated with PJ-068 plugs so that they're interchangeable among a number of my transmitters. Instead, I made an adapter with a PJ-068 compatible jack and a 4-pin Cheyenne compatible plug. Because the common ground would create a hum problem, I decided to have the PTT switch control a DC, not AC, signal, thus removing AC crosstalk from the common return line.

To do this I added a second, 5VDC relay, and rectified the 6.3VAC filament voltage to provide the voltage to drive this relay (see the schematic above). The mic's PTT button now switches this DC voltage. The new relay then switches the 6.3VAC signal to the original Cheyenne relay.

The new relay also has an additional benefit -- I wanted some way to mute an external receiver during transmit as well as key an external amplifier, and the extra contacts on the relay now provides these functions. (A previous owner of the Cheyenne had rewired the 6-pin connector that connects to a receiver (such as the Commanche) and several of these pins were left unused, so I brought these two new signals (Receiver Mute and Amplifier Key) to these unused pins on this connector).

(Additional note: the 6.3 VAC relay has a coil resistance of only about 8 ohms. This means that it draws about 0.8 A when ON. The only 5VDC relay I could find in my junk box has contact ratings of 1A at 30 VDC. OK, 1A is greater than 0.8A, but personally, I'd prefer a bit more margin. It seems to be working well so far, though.)

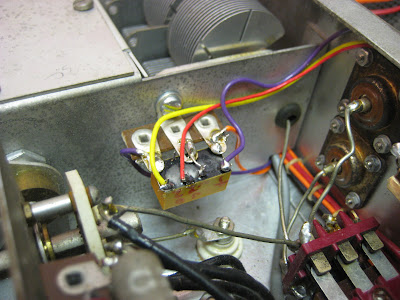

(Mounting of the 5V relay)

4. The SPOT switch did not work in STBY mode. Incorrectly rewired by someone in the past, I connected it to pin 5 of the relay (300V when not transmitting, although it really should go to pin 4 of the relay (per the schematic), but the remaining wire wasn't long enough, and pin 5 is a good compromise).

5. VFO tracking way off. Re-adjusted, but during this readjustment I discovered that the bottom-end of 80 meters would quickly diverge despite the rest of the band tracking well. Because I intend to use the transmitter for AM only, I decided to leave well-enough alone and I adjusted the bandspread to track the VFO dial over the range of 3.7 - 4 MHz.


Still to be Resolved:

1. Oscillator: the 1.8 MHz fundamental at the plate of the oscillator 6AU6 (that's later doubled to provide the 80 meter signal) looks terrible, as can be seen in the top trace below (the bottom trace is the RF output (sampled via an attenuator)):

I'm surmising that the signal on the oscillator plate looks this way because the 8.5 uH inductor in the 6AU6 plate circuit is differentiating a 1.8 MHz plate-current pulse-train from the 6AU6 (after all, v = Ldi/dt). But is this the way it really ought to look? I've no idea.

Never the less, the transmitter seems to perform OK and I cannot find anything obviously wrong in the oscillator circuit, so I'm going to reserve judgment...

(Additional note: The waveform at the grid of the oscillator looks great -- a nice sine wave. Just the plate signal looks weird. Ought to have a resonant circuit to make it look nice, I think.)

2. There is a bit of audio roll-off from about 1.5 KHz (down 1 dB from 1 KHz) to 5 KHz (down 3 dB from 1 KHz). The first place this roll-off appears is at the plate of the second 12AX7 stage (yet it looks fine at this stage's input grid). I've yet to identify the cause -- I suspect it might be roll-off caused by the RC network formed by the AUDIO pot and the 12AX7 grid capacitance at pin 2, but...

3. I'm not sure if this is a problem or not, but carrier power does increase a bit as I approach full modulation, even though I've disabled the "control-carrier" feature of the modulator. I'm not sure what the cause is. Perhaps a non-linear PA Screen Grid transfer function? Or...?

4. VFO drifts.


Tuning up the Transmitter:

It's important that the transmitter's loading be properly adjusted. If the loading is too light you'll get peak compression on the RF envelope. I find that adjusting loading for peak power in CW mode actually puts it about where it needs to be for AM.

Here's the procedure I use. It seems to work.

1. Rotate LOAD and AUDIO controls fully counter-clockwise.
2. Place function switch in GRID position. Press PTT and adjust DRIVE for 3 mA (or for peak reading if 3 mA cannot be reached).
3. Place the function switch in PHONE and the meter switch in the PLATE position. Press PTT and dip the plate using the FINAL control.
4. Switch the meter switch back to GRID. Press PTT and ensure grid drive isn't exceeding 3 mA. (Important note: I've found that as I rotate the DRIVE control through 360 degrees, I hit the 3 mA level at four positions. And for two of these four locations, the output power is greater than for the other two locations, despite the equivalent 3 mA drive level. When performing the final DRIVE adjustment, be sure to select one of the two DRIVE positions that results in greatest output power (at 3 mA drive)).
5. Switch the function switch to CW. Press PTT and advance LOAD to peak the power output. Dip plate current again, just to be sure.
6. Switch the function switch back to PHONE. Press PTT and adjust the new CARRIER LEVEL pot (on the back panel of my Cheyenne) to the desired carrier power out (no modulation). Then, while talking into the microphone and monitoring the RF envelope on a scope, advance the AUDIO control until the "troughs" of the modulation envelope are just on the cusp of flat-lining. If you find that the peaks of the envelope reach their max level before the troughs reach their min level, you have too much carrier and you should back down the CARRIER LEVEL pot -- you're just wasting power.

You're done!


Other Notes:

1. One goal was to make my modifications without drilling new holes in the transmitter, so that if someone, at a later date, wished to return the transmitter to its original condition, they could. Fortunately, it was fairly easy to add additional terminal strips using existing screws, and the key-jack hole on the back of the chassis was an ideal place to mount the Carrier-Level pot.

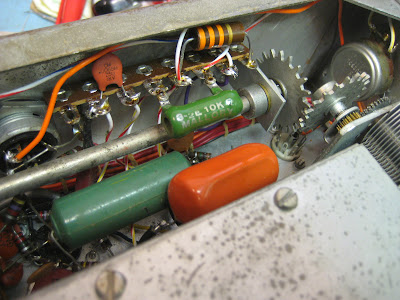

Additional terminal strip for new components. No holes drilled!

2. For proper AM operation, the Loading control must be adjusted for peak power out (and perhaps even a bit beyond, to be on the safe side), otherwise the positive modulation peaks will be greatly compressed and your audio will sound lousy.

3. The 1 uF cap across the new carrier-level pot can be made larger if it's desirable to run the Cheyenne at lower power (and thus a lower potentiometer resistance) and to keep the low-frequency cut-off. But increasing its value will also increase the amount of time that it takes for this stage to reach its bias point when PTT is pressed.

4. At higher carrier levels the Cheyenne has somewhat less measurable distortion at close-to 100% modulation than it does at lower carrier levels (as long as you aren't exceeding the capabilities of the PA on voice peaks, of course). I attribute this to non-linearities in the PA's screen grid transfer function (hypothesized, but not proven).

5. Here's a transfer curve that I've made, using my Cheyenne transmitter, showing RF output voltage (attenuated by my RF "sampler") versus PA Screen Voltage (note: I'm using a 6293 tube in lieu of a 6146). Test conditions: PHONE mode, 80 meters, no modulation.

You can see the curve bending at the high voltages (this results in compression of RF envelope peaks). It looks pretty linear at lower voltages (the slight burbles are most likely due to measurement error (of either screen voltage or RF amplitude) on my part).

(Click on image to enlarge)

6. WC3K's articles in Electric Radio (regarding the DX-60, see below) describe a neat modulation monitor using an LED. There's no reason why this can't also be used with the Cheyenne. I didn't install it, because I didn't want to drill a hole in the front panel and, besides, I use a scope to monitor my modulation. But I recommend taking a look at it. (You can find similar circuits in some of the web sites discussing DX-60 mods, too.)
7. A reminder: Update (2 January 2010): New information on my Cheyenne can be found here.

Resources:

Heathkit MT-1 "Cheyenne"Information HERE

Heathkit Schematics HERE

Unfortunately, I couldn't find any information regarding modifying the Cheyenne on the web. However, its design is similar to the DX-60, and there are articles that discuss improving AM performance of the DX-60...

Electric Radio articles on DX-60 improvements:

1. "Fun with a DX-60," Bill Breshears, WC3K, Electric Radio, Issue 133, May, 2000
2. "More Fun with a DX-60," Bill Breshears, WC3K, Electric Radio, Issue 138, November, 2000

Websites with DX-60 improvements or discussions:

• WC3K Improvements (note: the 50 ohm pot should be 50K ohms)
• K4TAX Improvements
• KS3K Improvements
• N4JK Modifications
• K4TLJ Modifications
• LA8AK

Let's see...where did I put that screwdriver?

Standard Caveat...

I hope you find this information useful, but please, use these modifications at your own risk -- although they worked for me, I cannot guarantee that they'll work for you. (After all, I could have made a mistake in transposing them from my lab notebook to this post.)

If you do find any errors, or if you have any questions, please let me know. Thanks!

- Jeff, K6JCA
