We've just set up a 10 Meter Beacon!

At the moment, the equipment consists of a Radio Shack HTX-100 running 20 watts into an inverted-vee and keyed with an ID-O-Matic keyer. (Please note that the keyer identifies the station as being 1 watt ("1 W") -- I'll update this to the correct power as soon as I can get my laptop to the keyer).

Beacon frequency is 28.222 MHz.

The beacon is located in Carmel Valley, California (between Salinas and Carmel), near the summit of Laurales Grade, at an elevation of about 1,620 feet. Grid square is CM96dm.

Let me know if you copy it. You can leave a comment here, or you can reach me at: jca1955 at sbcglobal "period" net.

By the way -- if you'd like a QSL card for reception of the beacon, please send a QSL and a self-addressed stamped envelope.

Thanks!

- Jeff

## Saturday, September 1, 2012

## Monday, July 30, 2012

### Worst-Case and Temperature Analysis with LTSpice

In a previous posting (here) I discussed using Linear Technology's SPICE program (

When doing these sorts of analyses, I usually also want to know how the circuit performs at temperature extremes to ensure that, given the temperature characteristics of semiconductor junctions, the circuit's performance is still acceptable. So, while analyzing the circuit for worst-case component variations, I can simultaneously use the SPICE

Here's a simple circuit demonstrating this:

This is a comparator circuit in which the reference voltage is set by a zener diode, D1. I'd like to know how this circuit performs at the temperature extremes of -55 and +125 degrees C, as well as how it performs for the worst-case resistor values, given their tolerance of 1%. So there are two .

Because I'm only interested in the two temperature extremes and not in any intermediary temperatures, I'm going to define the temperature to step from -55 degrees to +125 degrees in a single step of 180 degrees. The command is:

(Note that if I wanted to step the temperature between these two limits in, say, 10 degree increments, the command would be: .step temp -55 125 10).

The second

So we have two

This circuit has hysteresis (via R7), but what effect will it have on the switching threshold, given that a zener is used for the reference voltage? I'll define the input voltage source V1 to linearly ramp up from 9 to 15V and then to ramp back down to 9V over a 1 second period (there may be a simpler way of doing this with SPICE, but this method works, too), to check performance during low-to-high and high-to-low transitions.

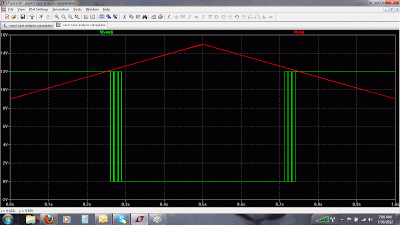

Below are the plots from the 80 runs, showing how the comparator threshold changes due to component tolerances and temperature variations (component tolerance, even though 1%, results in the greatest variation in performance). The left half of the plot shows the comparator threshold as the input voltage increases from low to high, and the right half shows it as the input voltage decreases from high to low.

Here's a plot showing how the voltage at the node "V+" (the node attached to the zener diode) changes between the two temperature extremes (there's about a 50 mV delta):

1. As mentioned, this circuit has two step sweeps: one for

2.

*LTSpice IV*) to perform Monte Carlo and Worst Case circuit analysis.When doing these sorts of analyses, I usually also want to know how the circuit performs at temperature extremes to ensure that, given the temperature characteristics of semiconductor junctions, the circuit's performance is still acceptable. So, while analyzing the circuit for worst-case component variations, I can simultaneously use the SPICE

*.step*command to step the temperature (in degrees Celsius) over the range I'm interested in.Here's a simple circuit demonstrating this:

(click on image to enlarge)

This is a comparator circuit in which the reference voltage is set by a zener diode, D1. I'd like to know how this circuit performs at the temperature extremes of -55 and +125 degrees C, as well as how it performs for the worst-case resistor values, given their tolerance of 1%. So there are two .

*step*commands: one to vary temperature and one to vary resistor values.Because I'm only interested in the two temperature extremes and not in any intermediary temperatures, I'm going to define the temperature to step from -55 degrees to +125 degrees in a single step of 180 degrees. The command is:

.step temp -55 125 180

(Note that if I wanted to step the temperature between these two limits in, say, 10 degree increments, the command would be: .step temp -55 125 10).

The second

*.step*command defines that there will be 50 runs, for each of which the values of the resistors will be randomly varied between their worst-case values (as defined by their tolerances).So we have two

*.step*commands, one which will vary temperature between 2 values, and the other which will perform 50 worst-case runs. Spice nests the step commands, so, overall, there will be a total of__100__runs performed (2 temp runs for each of the 50 worst-case runs).This circuit has hysteresis (via R7), but what effect will it have on the switching threshold, given that a zener is used for the reference voltage? I'll define the input voltage source V1 to linearly ramp up from 9 to 15V and then to ramp back down to 9V over a 1 second period (there may be a simpler way of doing this with SPICE, but this method works, too), to check performance during low-to-high and high-to-low transitions.

Below are the plots from the 80 runs, showing how the comparator threshold changes due to component tolerances and temperature variations (component tolerance, even though 1%, results in the greatest variation in performance). The left half of the plot shows the comparator threshold as the input voltage increases from low to high, and the right half shows it as the input voltage decreases from high to low.

(click on image to enlarge)

Here's a plot showing how the voltage at the node "V+" (the node attached to the zener diode) changes between the two temperature extremes (there's about a 50 mV delta):

(click on image to enlarge)

**Additional Notes**1. As mentioned, this circuit has two step sweeps: one for

*temp*and one for*run*(in which the resistor values are varied for worst-case analysis). Note that*LTSpice*allows step sweeps to be nested up to three deep.2.

*LTSpice*is available, for free, from Linear Technology, and can be found here.## Sunday, July 29, 2012

### Monte Carlo and Worst-Case Circuit Analysis using LTSpice

SPICE is a handy tool for evaluating circuits without having to first breadboard them, and through its "directives," it provides a powerful method for analyzing how a circuit might perform with components exhibiting real-world tolerances.

One such method of "real-world" analysis is Monte Carlo analysis, which, with each new analysis run, randomly varies parameters (within their user-defined limits) to give the user a useful picture of actual circuit performance.

However, as a circuit designer, I'm most often interested in worst-case performance. That is, I want to know how a circuit performs at the extremes of component values, to ensure that I've met whatever design specification I'm designing to. And although Monte Carlo analysis can tell me what the performance is at these limits, if the circuit contains many components, it can take quite a lot of runs before its random selection of parameter values happens to simultaneously correspond to the worst-case limits of all of the components (and it's quite possible that I'll never see the true worst-case limits -- after all, it's a matter of chance).

To truly evaluate performance at a circuit's worst-case limits, we can perform a "worst-case" analysis in lieu of a Monte Carlo analysis. This analysis has an added advantage, too, in that not as many runs are required to ensure that we've truly evaluated all of the components over all possible variations in their tolerances -- after all, we don't need to measure

Linear Technology's

Nevertheless, LTSpice does indeed have a pre-defined Monte Carlo function. This is the "mc" function, and a search of the Help Topics for "mc" will point to the .PARAM topic, and under this heading we find the function

To use this function, rather than define a resistor's value as, say, 10K, we define it as "{mc(10K,0.05)}", where

OK, so the predefined

In this definition:

Take as an example a 10K ohm resistor. Normally, we'd just label its value in the LTSpice schematic as "10K". However, to vary its value between its worst-case values, we instead use a more complex label for its value. Rather than entering "10K", in this case we'll enter "{wc_a(10K,tola)}" into the component's value field. (Note the use of the curlicue brackets).

So what happens when we run the analysis?

If this is the first analysis run (

But for each new run after the first run, and for each component defined with a

Here's a demonstration of both Monte Carlo and Worst Case analysis. Consider this basic circuit:

Given these component values, a frequency sweep of the input from 1 Hz to 1KHz shows that the circuit has the following gain and phase transfer function when measured at its Vout node:

But what happens when the component values vary over their tolerance range? Let's suppose that the resistors have 10% tolerance and the capacitors have 20% tolerance. Let's perform a

(Note that within the "mc" function, I'm not setting the tolerance field to an actual number (although I could have done it this way, too). Instead, I'm using a separate directive (.param) to define the tolerances (in this case, 10% and 20%) globally.)

Running the Monte Carlo analysis 1000 times (via the directive ".step param run 1 1000 1") gives us the following spread of gain and phase plots:

But we can't be sure that we've truly evaluated worst-case performance. So let's instead use our new "worst-case" function for a worst-case evaluation.

The schematic, with its new Spice directives and functions, now looks like this:

And the analysis output, after 40 runs, looks like this:

Note the discrete intervals between plots. This is because the worst-case analysis is only using component values that are at the +/- tolerance limits for each component, and not any intermediary values (except for the first of the 40 plots, which uses the nominal component values for its analysis).

(Note: the above was edited on 29 May 2020 to replace two "worst-case" functions (wc_a and wc_b) with a single worst-case function, wc.)

(This section added 29 May 2020)

The worst-case analysis component values selected on a run-by-run basis for the simulations, above, are a function of random numbers. Therefore, to ensure that all combinations of "worst-case" component values have been evaluated, many runs need to be evaluated (above and beyond the "optimal" number of runs equal to 2^N, where N is the number of components being varied).

In the "Comments" section of this blog post, Harry Dymond (Electrical Energy Management Group, University of Bristol, UK) on November 9, 2012, posted an excellent technique for optimizing the number of runs necessary to perform a complete worst-case analysis.

If we consider, for worst case analysis, that each component has two possible values (nominal value plus tolerance, and nominal value minus tolerance), then these two value "states" can be represented by a single binary bit. In Harry's technique, "1" represents "nominal value plus tolerance", and "0" represents "nominal value minus tolerance.

Therefore, if we have N components in our circuit that we would like to vary the tolerances of, we can represent these components with N bits.

If we then stepped through all possible combinations of these N bits (from 0 to (2^N)-1), and at each step ran a simulation using the appropriate value of each component as defined by the state of its bit for that step, we would step through

In other words, we would have optimized the number of runs to be the minimum set required for a complete worst-case analysis of our circuit

The table below demonstrates the component "bit" values for the 16 runs required for a complete worst-case analysis of 4 components:

Each component (that will be varied) is assigned a unique "Component Index" number. This index starts at 0 and increments by 1 for each component.

For example, if we are going to vary the tolerance of four components in a circuit, these four components are assigned index values starting with 0 for the first component, 1 for the next, 2 for the third, until we reach 3 for the fourth (and last) component.

You can think of these index values as each being a "bit position" in the N-bit word (where N, in this particular example, would be 4). For example, index 0 refers to the 2^0 bit location, index 1 refers to the 2^1 bit location, etc. You can see this in the table, above.

This table determines how the tolerances are set for each run. For Run = 0, all entries in the column for that run equal 0. Therefore, all four component values will have their tolerances

For the next run, Run = 1, the component whose index is 0 will have its tolerance added to its nominal value. All other components will have their tolerances subtracted from their nominal values.

For the next run, Run = 2, now the component whose index is 1 will have its tolerance

And for the next run, Run = 3, now the two components whose indexes are 0 and 1 will have their tolerances added to their nominal values. All other components will have their tolerances subtracted from their nominal values.

And so it goes, in a binary-counting fashion, until we reach the last run count of 15.

How do we do this using LTSpice? Here's the new schematic, using the same four components that we analyzed in our earlier, non-optimized worst-case analysis, above.

The differences between this new LTSpice simulation and the earlier version are:

1. The "wc()" function now has a third input variable: "index" (i.e. the "component index", and the function is now:

.function wc(nom,tola,index) if (run == -1, nom, if(binary_digit(run,index),nom*(1+tola),nom*(1-tola)))

2. The wc() function for each component (in each component's "value" field) is assigned a unique index. The index for the first component is 0, and indexes increment sequentially by 1.

3. The "binary_digit" function is a new function. It returns either a 1 or a 0, depending upon run-number and component index:

.function binary_digit(run,index) floor(run/(2**index))-2*floor(run/(2**(index+1)))

4. The "run" parameter now starts at -1 (as mentioned by "anonymous" on December 13, 2012, in the comments section, below). When "run" equals -1, the circuit simulation is run with

There are 4 indexes (and thus 4 bits) for this circuit. Thus, a complete worst-case simulation will require 16 runs to test all combinations of worst-case tolerances, plus there is one additional run with components set to their nominal values. So there are 17 runs, total.

OK, let's run the example!

First, here's the LTSpice schematic, again:

And here are the plots of the voltage at the "vout" node:

Please note that this technique (as described by Harry Dymond in his November 9, 2012 comment in my comments section below) is also described in the following article written by Linear Technology Corporation, in 2017:

https://www.embedded-computing.com/articles/getting-the-worst-case-circuit-analysis-with-a-minimal-number-of-ltspice-simulation-runs

(Note, too, that in my example, above, I've replaced Harry's use of "powerOfTwo" with the shorter word "index", used by the LTC authors.)

1. In the "comments" section, "Thomas", on December 2, 2016, points out that worst-case analysis could miss LC circuit resonances. If your circuit contains inductors and capacitors, Monte Carlo analysis (in lieu of Worst-case analysis) would probably be more appropriate.

2. Further information on Worst-Case and Temperature Analysis can be found here:

http://k6jca.blogspot.com/2012/07/worst-case-and-temperature-analysis.html

(And check out the other comments in the comments section, below, too).

LTSpice is available for free from Linear Technology. You can find it here.

One such method of "real-world" analysis is Monte Carlo analysis, which, with each new analysis run, randomly varies parameters (within their user-defined limits) to give the user a useful picture of actual circuit performance.

However, as a circuit designer, I'm most often interested in worst-case performance. That is, I want to know how a circuit performs at the extremes of component values, to ensure that I've met whatever design specification I'm designing to. And although Monte Carlo analysis can tell me what the performance is at these limits, if the circuit contains many components, it can take quite a lot of runs before its random selection of parameter values happens to simultaneously correspond to the worst-case limits of all of the components (and it's quite possible that I'll never see the true worst-case limits -- after all, it's a matter of chance).

To truly evaluate performance at a circuit's worst-case limits, we can perform a "worst-case" analysis in lieu of a Monte Carlo analysis. This analysis has an added advantage, too, in that not as many runs are required to ensure that we've truly evaluated all of the components over all possible variations in their tolerances -- after all, we don't need to measure

*between*the tolerances limits (which is what Monte Carlo analysis does). For example, if one of the components is a 10K ohm resistor with a 5% tolerance, worst-case analysis will only use resistance values of 10.5K and 9.5K for this component and not any other value between these limits (whereas Monte Carlo analysis would randomly use any value between, and including, these limits).Linear Technology's

*LTSpice*can handle both Monte Carlo analysis as well as worst-case analysis. Unfortunately, it's not obvious how to do this from their "Help Topics." For example, "Monte Carlo", when entered into LTSpice's search field, returns no results. Not much use, that!Nevertheless, LTSpice does indeed have a pre-defined Monte Carlo function. This is the "mc" function, and a search of the Help Topics for "mc" will point to the .PARAM topic, and under this heading we find the function

*mc (x,y)*, which, when invoked, returns a "random number between x*(1+y) and x*(1-y) with uniform distribution."To use this function, rather than define a resistor's value as, say, 10K, we define it as "{mc(10K,0.05)}", where

*10K*is its nominal value, and*0.05*is its tolerance (5%). (An example will follow below).OK, so the predefined

*mc*function handles Monte Carlo analysis, but there is no pre-defined "worst case" function. We need to create this ourselves, but it's not too difficult. This can be done using Spice's ".function" directive. Here's an example of a function for worst-case analysis (we'll use this later, too):**.function wc(nom,tola) if (run == 1, nom, if(flat(1)>0,nom*(1+tola),nom*(1-tola)))**

In this definition:

*.function*is the Spice directive for defining a function.*wc*is the name I've given this instance of this worst-case function.*nom*is the "nominal" value (e.g. 10K for a 10K resistor).*tola*is the tolerance (defined elsewhere with a .param directive (e.g. 0.1 for a 10% tolerance)).*run*is a variable (defined elsewhere in the .step directive) identifying the current run count).*flat(1)*is a Spice function that returns a random number between -1 and 1.

*.function*and*flat*can both be found in LTSpice Help).Take as an example a 10K ohm resistor. Normally, we'd just label its value in the LTSpice schematic as "10K". However, to vary its value between its worst-case values, we instead use a more complex label for its value. Rather than entering "10K", in this case we'll enter "{wc_a(10K,tola)}" into the component's value field. (Note the use of the curlicue brackets).

So what happens when we run the analysis?

If this is the first analysis run (

*run*is defined elsewhere in the .step directive and simply is the current run being performed), then, because run = 1, the function returns the value assigned to*nom*, in this case, 10K.But for each new run after the first run, and for each component defined with a

*wc_a*function, the function*flat(1)*is re-evaluated for that component. If the random result returned from*flat(1)*is greater than 0, then the tolerance is added to the component's nominal value (e.g. for a resistor whose nominal (*nom*) value is 10K, if*tola*is 0.1 (10% tolerance), the resistor's value is set to 11K). Otherwise, the tolerance is subtracted from the component's nominal value (e.g. the 10K resistor is set to 9K).Here's a demonstration of both Monte Carlo and Worst Case analysis. Consider this basic circuit:

(Click on image to enlarge)

Given these component values, a frequency sweep of the input from 1 Hz to 1KHz shows that the circuit has the following gain and phase transfer function when measured at its Vout node:

(Click on image to enlarge)

But what happens when the component values vary over their tolerance range? Let's suppose that the resistors have 10% tolerance and the capacitors have 20% tolerance. Let's perform a

**Monte Carlo**analysis on this circuit, given these tolerance values. The same circuit, but now set up with its Monte-Carlo functions and .param directives, looks like this:
(Click on image to enlarge)

(Note that within the "mc" function, I'm not setting the tolerance field to an actual number (although I could have done it this way, too). Instead, I'm using a separate directive (.param) to define the tolerances (in this case, 10% and 20%) globally.)

Running the Monte Carlo analysis 1000 times (via the directive ".step param run 1 1000 1") gives us the following spread of gain and phase plots:

(Click on image to enlarge)

But we can't be sure that we've truly evaluated worst-case performance. So let's instead use our new "worst-case" function for a worst-case evaluation.

The schematic, with its new Spice directives and functions, now looks like this:

(Click on image to enlarge)

And the analysis output, after 40 runs, looks like this:

(Click on image to enlarge)

Note the discrete intervals between plots. This is because the worst-case analysis is only using component values that are at the +/- tolerance limits for each component, and not any intermediary values (except for the first of the 40 plots, which uses the nominal component values for its analysis).

(Note: the above was edited on 29 May 2020 to replace two "worst-case" functions (wc_a and wc_b) with a single worst-case function, wc.)

__Optimized Worst-case Analysis__(This section added 29 May 2020)

The worst-case analysis component values selected on a run-by-run basis for the simulations, above, are a function of random numbers. Therefore, to ensure that all combinations of "worst-case" component values have been evaluated, many runs need to be evaluated (above and beyond the "optimal" number of runs equal to 2^N, where N is the number of components being varied).

In the "Comments" section of this blog post, Harry Dymond (Electrical Energy Management Group, University of Bristol, UK) on November 9, 2012, posted an excellent technique for optimizing the number of runs necessary to perform a complete worst-case analysis.

If we consider, for worst case analysis, that each component has two possible values (nominal value plus tolerance, and nominal value minus tolerance), then these two value "states" can be represented by a single binary bit. In Harry's technique, "1" represents "nominal value plus tolerance", and "0" represents "nominal value minus tolerance.

Therefore, if we have N components in our circuit that we would like to vary the tolerances of, we can represent these components with N bits.

If we then stepped through all possible combinations of these N bits (from 0 to (2^N)-1), and at each step ran a simulation using the appropriate value of each component as defined by the state of its bit for that step, we would step through

*all*possible combinations of the worst-case values without repeating or skipping a combination of values.In other words, we would have optimized the number of runs to be the minimum set required for a complete worst-case analysis of our circuit

The table below demonstrates the component "bit" values for the 16 runs required for a complete worst-case analysis of 4 components:

Each component (that will be varied) is assigned a unique "Component Index" number. This index starts at 0 and increments by 1 for each component.

For example, if we are going to vary the tolerance of four components in a circuit, these four components are assigned index values starting with 0 for the first component, 1 for the next, 2 for the third, until we reach 3 for the fourth (and last) component.

You can think of these index values as each being a "bit position" in the N-bit word (where N, in this particular example, would be 4). For example, index 0 refers to the 2^0 bit location, index 1 refers to the 2^1 bit location, etc. You can see this in the table, above.

This table determines how the tolerances are set for each run. For Run = 0, all entries in the column for that run equal 0. Therefore, all four component values will have their tolerances

*subtracted*from their nominal values.For the next run, Run = 1, the component whose index is 0 will have its tolerance added to its nominal value. All other components will have their tolerances subtracted from their nominal values.

For the next run, Run = 2, now the component whose index is 1 will have its tolerance

*added*to its nominal value. All other components will have their tolerances subtracted from their nominal values.And for the next run, Run = 3, now the two components whose indexes are 0 and 1 will have their tolerances added to their nominal values. All other components will have their tolerances subtracted from their nominal values.

And so it goes, in a binary-counting fashion, until we reach the last run count of 15.

How do we do this using LTSpice? Here's the new schematic, using the same four components that we analyzed in our earlier, non-optimized worst-case analysis, above.

The differences between this new LTSpice simulation and the earlier version are:

1. The "wc()" function now has a third input variable: "index" (i.e. the "component index", and the function is now:

.function wc(nom,tola,index) if (run == -1, nom, if(binary_digit(run,index),nom*(1+tola),nom*(1-tola)))

2. The wc() function for each component (in each component's "value" field) is assigned a unique index. The index for the first component is 0, and indexes increment sequentially by 1.

3. The "binary_digit" function is a new function. It returns either a 1 or a 0, depending upon run-number and component index:

.function binary_digit(run,index) floor(run/(2**index))-2*floor(run/(2**(index+1)))

4. The "run" parameter now starts at -1 (as mentioned by "anonymous" on December 13, 2012, in the comments section, below). When "run" equals -1, the circuit simulation is run with

*nominal*component values.There are 4 indexes (and thus 4 bits) for this circuit. Thus, a complete worst-case simulation will require 16 runs to test all combinations of worst-case tolerances, plus there is one additional run with components set to their nominal values. So there are 17 runs, total.

OK, let's run the example!

First, here's the LTSpice schematic, again:

And here are the plots of the voltage at the "vout" node:

Please note that this technique (as described by Harry Dymond in his November 9, 2012 comment in my comments section below) is also described in the following article written by Linear Technology Corporation, in 2017:

https://www.embedded-computing.com/articles/getting-the-worst-case-circuit-analysis-with-a-minimal-number-of-ltspice-simulation-runs

(Note, too, that in my example, above, I've replaced Harry's use of "powerOfTwo" with the shorter word "index", used by the LTC authors.)

__Other Notes and Caveats:__1. In the "comments" section, "Thomas", on December 2, 2016, points out that worst-case analysis could miss LC circuit resonances. If your circuit contains inductors and capacitors, Monte Carlo analysis (in lieu of Worst-case analysis) would probably be more appropriate.

2. Further information on Worst-Case and Temperature Analysis can be found here:

http://k6jca.blogspot.com/2012/07/worst-case-and-temperature-analysis.html

(And check out the other comments in the comments section, below, too).

**Resources:**LTSpice is available for free from Linear Technology. You can find it here.
