These notes came about because I was wondering why, in some applications (such as a Phase Detector), a transformer's output would have a 90 degree phase shift, but in other applications there would be no phase shift (that is, the phase would be either 0 or 180 degrees, depending upon phase-orientation of the windings, but never 90 degrees). So I sat down and worked out the following...

**Notes on Modeling Transformers for RF applications:**A transformer is really just coupled inductors. Let's look at a model of the basic coupled-inductor:

Drawn with these voltage polarities and current directions, the voltage and current relationships are:

**V**

_{1}= jω**L**

_{1}***I**

_{1}+ jωM ***I**

_{2}**V**

_{2}= jω**M ***

**I**

_{1}+ jω

**L***_{2}**I**

_{2}

_{ }Where:

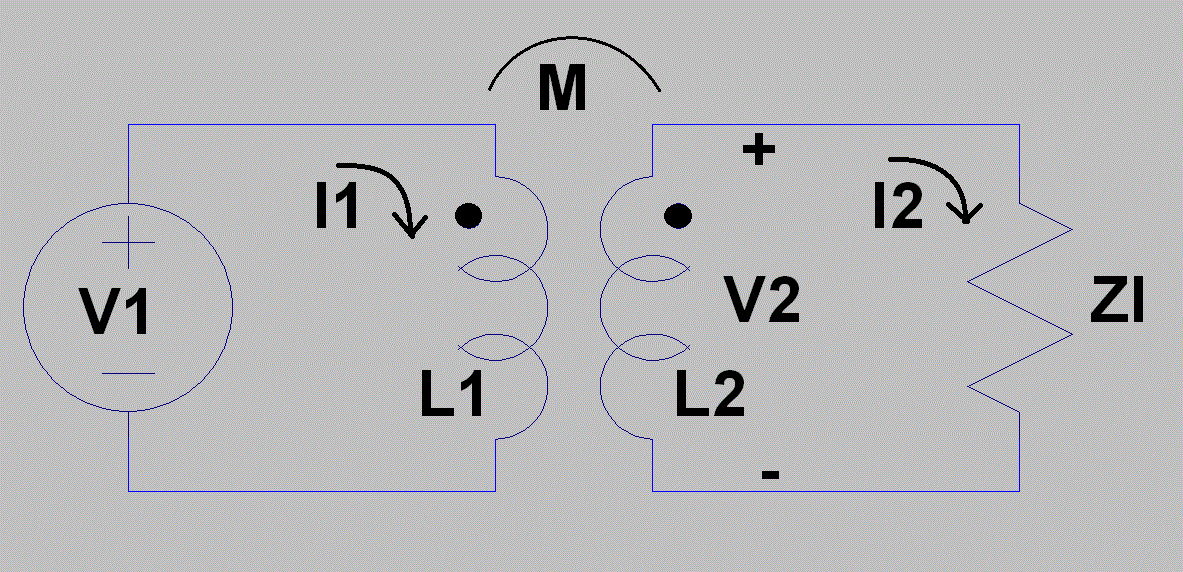

**ω = 2* π * Frequency**In actual use, though, where one coupled inductor is driven and the other attaches to a load, it's more conventional to draw the voltages and currents as follows (note the relationship of the phasing dots):

Note that Z

_{l}is the load attached across L_{2}, and**I**is flowing in the opposite direction (now from the positive terminal of L_{2}_{2}), compared to the previous drawing.Because the direction of

**I**is reversed, we need to flip the sign of the_{2}**I**components in the previous equations, which now become:_{2}**Equation 1: V**

_{1}= jω**L**

_{1}***I**

_{1}- jωM ***I**

_{2}**Equation 2: V**

_{2}= jω**M ***

**I**

_{1}- jω

**L***_{2}**I**

_{2}Manipulating these two equations results in the following voltage gain relationship:

We can express this relationship in terms of N

_{1}and N_{2}, the number of turns of each inductance's winding. If the inductors are tightly coupled, they will be on a common core with identical dimensions. We can replace L_{1}and L_{2}in the above equation with their inductance equations...We could also solve the equations for the current-gain. The result is:

For the purposes of understanding how the current-sense transformer in a Phase Discriminator creates a voltage with a 90 degree phase shift, let's derive the equation for the

*secondary's*voltage in terms of the*primary*'s current:(The 'j' term in the above equation means that V

_{2}and I_{1}are 90 degrees out of phase.)__This is an important conclusion.__If we assume that the load impedance (Zl) is*significantly larger*than the reactance of the "secondary's" impedance (**jω****), then the voltage at the secondary of the transformer will be shifted by 90 degrees from the phase of the primary's current!****L**_{2}(By the way, you can see this 90-degree relationship applied in the Bird Wattmeter, here).

On the other hand...

**Note that if Zl is resistive and appreciably smaller than the reactance of the****secondary's impedance (****, there is no longer a phase shift between primary current and secondary voltage!****jω****)****L**_{2}Finally, let's determine the impedance seen across the primary winding when a load, Z

_{l}, is connected across the secondary:for tightly coupled inductors, this equation becomes:

and we can simplify it further, with two different conclusions...

The first reduction above is simply the reflection of the load, Z

_{l}, (divided by the square of the turns ratio) to be the primary's impedance.And the last equation signifies that, if there is

*no*load attached to L_{2}, then it's as if L_{2}isn't there and L_{1}simply looks like itself, an inductor.For analysis purposes, Mutually-Coupled Inductors can also be represented by a T-network equivalent circuit. All of the above equations could be derived using this model in lieu of the two coupled inductors:What does this mean?

If the current-sense transformer has a high-impedance load attached to its secondary (so that it creates the 90 degree phase shift), its primary inductance could add phase-shift to the transmission line and thus affect the SWR.

To minimize this unwanted effect, if the reactance of L_{1 }is kept to, say, 5 ohms (1/10th of 50 ohms) at the highest frequency, 30 MHz, then the SWR will only shift from 1:1 to 1.1:1.

But 5 ohms at 30 MHz is an inductance of 26 nH. Very small!!

(Note: 10 ohms of added reactance will shift a 1:1 SWR to 1.2:1, 20 ohms to 1.5:1).

__A quick note on multiple secondaries...__If there is a single primary, the current through this primary must equal the sum of the currents in all of the secondary windings, multiplied by their turn ratios. E.g. for a three-secondary transformer:

Ip = Is1*N1 + Is2*N2 + Is3*N3

In the above examples, some of the transformers have had two equal secondary windings ('N' turns-ratio, each) with identical loads across each winding. Therefore the current in each secondary is the same:

Ip = Is1*N1 + Is2*N2 = 2*Is*N

And therefore the current in each secondary is:

Is = Ip/(2N)

That's it for this post!
