HP 85046A: An Inexpensive Replacement for a Bad Solid-State Transfer Switch

This 85046A S-Parameter Test Set followed me home from a recent De Anza swapmeet.

Per the seller, it had a bad "Solid State Transfer Switch".  But the price was right -- working 85046A units typically run about $1000 on eBay, so I thought I'd take a chance with it, given my previous positive experience modifying an 85046B (click here for details).

A quick check -- S11 and S22 (with both ports open (unloaded)) were way off (e.g. -30 dB, where they should have been about 0 dB).  Hopefully this was the fault of the bad switch and nothing else would be wrong with the unit.

But only one way to know for sure...replace the switch!

Getting started:

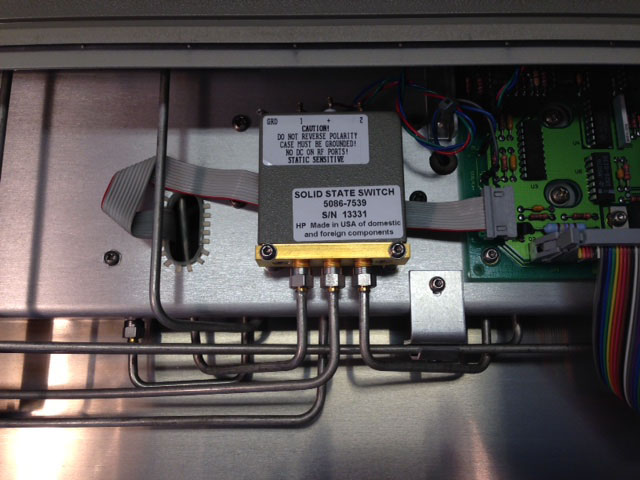

Here's the solid-state Transfer Switch (p/n 5086-7539), in situ.

Equivalent replacements are usually quite expensive (per eBay), but there's a simple, inexpensive solution:  replace the solid-state switch with a much less expensive mechanical coaxial switch.

HP originally designed these S-Parameter boxes with a mechanical coaxial switch to perform the Transfer Switch function.  So, by making this mod, I'd just be returning it to an earlier version.

Per the HP manual for the 85046A/B, the mechanical coaxial switch's part number is 5081-8178.  It's rated from DC to 18 GHz, 1 watt max., and has 24V coils.

Well, I didn't have one of these in my junkbox, but I did have an HP 33311B and an HP 33311C coaxial switch.  The 33311B also has 24V coils and is spec'd from DC to 18 GHz, 1 watt max, so it looks to me like it's an equivalent replacement for the 5081-8178.  (The 33311C is spec'd similarly, but with a wider frequency range to 26.5 GHz).

Replacing the bad solid-state switch with the 33311B switch is straight-forward:

1. Disconnect the 3 rigid coax cables from switch's  SMA connectors
2. Unscrew the two screws holding the switch to the chassis (mine were spline-heads)
3. And unsolder the three wires from the terminal on the back of the case (noting which color wire went to which terminal).

And then to install the mechanical coaxial switch, just reverse these three steps.

Here's the wiring on the original solid-state Transfer Switch:

 And here's the newly wired 33311B (ready to be installed on the chassis).

Logic Board Modifications:

But there's one more step.  The "Logic Board" that drives the Transfer Switch also needs to be modified.

The Logic Board used to drive the solid-state transfer switch is p/n 85046-60016.  But, per the manual, the p/n of the Logic Board which drives a mechanical coaxial switch is 85046-60051.

Fortunately, the modifications to make a -60016 board into a -60051 are simple --  there's only a slight difference in component values between the two boards. Here's a summary of those differences:

        Solid-State Switch     Mechanical Switch
          (85046-60016)          (85046-60051)
   R7     39 ohms                  56 ohms (2 watts)
   C2     4,700uF, 35V         10,000uF, 35v
   R25   0 ohms                    unstuffed
   R5     0 ohms                    unstuffed

I've highlighted these four components on the PCB layout diagram below (click on image to enlarge).

Now, I could have replaced all four parts, but being lazy I decided to take the easier route and just remove R5 and R25 and see how the unit worked with just those two parts removed.   I left R7 and C2 at their original values.

And to make it easy to back-out my mods, I just lifted one leg on R5 and one leg on R25.  Here's a picture.

An Unintended Step to the Left:

After I finished the mods and reconnected the cables between the 8753A and the 85046A, I powered up the system  for a  quick test.

Hmmm...S11 still wasn't working correctly -- in fact, it was behaving very strangely.  Oh oh -- could I have a bad Directional Bridge?

I poked around and noticed that when I was measuring S11, the voltage at the coaxial switch's "Common" terminal, which should have been around 20 VDC, had dropped to 17.5 VDC.  Yet, for S22 measurements, this pin was at the correct 20 volts.

Could my coaxial switch be flakey?  I removed it from the 85046A and tested it with my lab supply.  Still flakey -- one of the coils would continuously draw current when it was selected.  In normal operation the switch should flip and the coil stop drawing current.

After taking the case off the switch and watching its operation while I powered one coil or the other, I noticed that the switch wasn't completely flipping to one side and instead it would hover midway and continuously consume current (thus the drop to 17.5 volts).

The fact that this failure also occurred while I was testing with my lab bench supply implies that the relay is bad (I was hypothesizing that perhaps I should have also increased C2 to 10,000 uF).

So I replaced the 33311B with the other coaxial switch that I had, the 33311C, and I left C2 unchanged.  The installation procedure for the 33311C is exactly the same as I described above for the 33311B.

After its installation I powered up the system and...success, it works!!!


Other Notes:

Although I left C2 unchanged, you might want to increase the value of C2 from 4700 uF to 10,000 uF.

Dick Benson, W1QG, has also performed this modification with success.

Some network analyzer versions might require the solid-state Transfer Switch.  For example,  if the network analyzer requires that the four S-parameters (S11, S21, S22, S12) be updated continuously (i.e. continuous switching), then you need the solid-state transfer switch. Refer to "Solid-state Switch Operation Considerations" in the Operating and Service Manual (p/n 85046-90001, April 1999), page 24 (of 78) in the PDF, or page 4 of section 3 (Operation) of the printed version.

So before you make this modification, verify that the relay version is adequate for your purposes.

Standard Caveats:

Obviously, if you make this modification, you should have  the necessary skills, knowledge, and experience to undertake this task.

Also, I might have made a mistake in my equations, assumptions, drawings, or interpretations.  If you see anything you believe to be in error or if anything is confusing, please feel free to contact me or comment below.

And so I should add -- this design and any associated information is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

Antenna Auto-tuner Design, Part 6: Notes on Match Detection

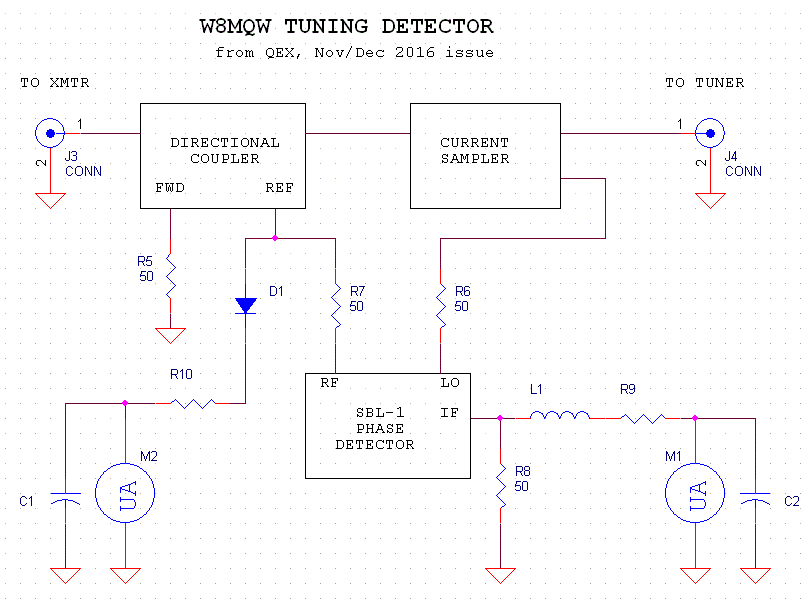

(Update, 10 November 16.  Added W3MQW's Tuning Detector from the November/December, 2016 issue of QEX.  See item 7, below.  Also, many of my comments below (regarding W3MQW's Tuning Detector) are published in my "Letter to the Editor," in the March/April 2017 issue of QEX.)

This is the sixth blog post in my Automatic Antenna Tuner Series.  (The fifth post, dealing with Directional Coupler design, is here).

Why match detection?

It seems to me that many microprocessor-based tuners use an SWR-based approach to tuning.  That is, they step through their components, looking for a trend in which the SWR decreases.  Once a trend is found, the tuning-algorithm can refine its tuning step size and (hopefully) locate an SWR minima.

With an L-network tuner there should only be one SWR minima (unlike a T-network tuner).  So, as long as the load SWR is within the tuner's matching range, and as long as the component step sizes are small enough, the algorithm should be able to tune the SWR down to meet the designed-for goals (e.g. SWR less than 1.5:1).

But I've never been impressed by this method of tuning.  Should an L-Network tuner start in the LsCp configuration or in the CpLs configuration?  It's a toss-up.

And the tuning-algorithm must hunt around, searching for a declining SWR trend, before it can continue to tune to a minimum SWR.

So, there are two reasons to be dissatisfied with an SWR-only algorithm.  But do better ways exist?  Could it be that SWR-tuning is the best choice?

So, as part of my design effort, I thought I'd explore other Match-Detection/Tuning methods.


Other Match-Detection Methods:

In addition to measuring SWR, here are some other parameters that can be measured.

• Detect phase of transmission-line current versus voltage.  Tune for zero phase difference.
• Detect the magnitude of the load's impedance (|Zload|) and tune it to be equal to 50 ohms.
• Detect the value of the load's Resistance (Rload) and tune for it to be equal to 50 ohms.
• Detect the value of the load's Conductance (Gload) and tune it to be equal to 20 millimhos.

Non-SWR tuning schemes seem to apply phase-detection in combination with one or more of the other three measurements above.

Let's look at some applications of these match-detection methods:

1.  Tuning Detector, AN/GRC-106

The AN/GRC-106 (and AN/GRC-106A) is a military HF transceiver first introduced in the 1960's.

Although it doesn't have an automatic tuner, it has two "tuning" meters (ANT. TUNE and ANT. LOAD), and the detection circuitry that drives these two meters is similar in function to the match-detect circuitry in other radios.  So this radio provides a good starting point for understanding a couple of basic tune-detection blocks.

(Photographed at the De Anza Swapmeet, 07/15)

Let's start with the schematic of the GRC-106's tuning detectors.  There are two functional blocks.  One block detects the phase difference between transmission-line voltage and transmission-line current (the GRC-106 documentation calls this block the "Tune Discriminator").

The second functional block detects if the magnitude of the load impedance is more or less than 50 ohms.  (This block is name the "Load Discriminator").

Both functional blocks are shown in the schematic below.

(click on image to enlarge)

The GRC-106's Tune Discriminator has a single function -- to indicate to the operator when the transmission-line current is in-phase with the transmission-line voltage.  An in-phase condition means that, to the radio, the load appears to be solely resistive, without any reactance.

On the other hand, the Load Discriminator indicates to the operator when the load has been tuned to look like a 50 ohm impedance.  Note my stress on the word impedance -- this detector simply indicates if the magnitude of the load's impedance looks like 50 ohms -- it has no idea if the 50 ohms is resistive, reactive, or a combination of the two.

So -- if the Tune Discriminator indicates 0 phase and the Load Discriminator indicates 50 ohms, then the antenna has been tuned to look like 50 ohms, resistive.  The operator will have tuned the radio's network to a 1:1 SWR!

Let's now look more closely at these two circuits...

The GRC-106 Tune Discriminator:

When a load is purely resistive, the transmission-line voltage is in-phase with the transmission-line current (i.e. 0 degrees phase delta between the two).

But if the load is inductive, the transmission-line current will lag the transmission-line voltage.  And if the load is capacitive, the current will lead the voltage.

The GRC-106 Tune Discriminator detects the phase difference between transmission-line voltage and current, generates a DC voltage proportional to this phase difference, and applies this voltage to a "center zero" panel meter (see the picture of the front panel, above).

(click on image to enlarge)

The secret to this circuit's operation is a 90 degree phase-shift introduced to the current sample.  That is, the voltages induced at the secondary of the current-sense transformer are 90 degrees out of phase with the transmission-line current passing through the transformer's primary.  So, if transmission-line voltage and current are exactly in phase on the line, they are out of phase by 90 degrees in this circuit.

Looking into the circuit a bit further...  The transmission-line voltage is "sampled" with a capacitive voltage divider (formed by C4 and C1 in the schematic below).  If the line voltage is "v", then the sampled-voltage is v/N.



(click on image to enlarge)

T1 can be analyzed as three coupled-inductors.  One inductor is simply the "one-turn" of wire passing through the center of the core.  The other two will have voltages induced across them that are equal to j*2pi*F*M*i, where F is frequency, M is the Mutual Inductance, and i is the current in the primary.

To illustrate phase-discriminator's operation, I've created a simple SPICE example.  (Please note that the 2.5mH inductor simply provides a DC path to ground for the transformer center-tap):

(click on image to enlarge)

(I used 4 turns for each secondary for purposes of simulation and illustration. But I don't know what the winding ratio really is.)

With a 50 ohm load (no reactance), transmission line current and voltage are in phase.  In the image below, please note the following:

1. The voltages across the two windings, L2 and L3, are equal in magnitude and always in-phase (when referenced to their winding phase "dots").  The graph below plots these inductor voltages, Vb-Vc and Vc-Va (and because they equal each other, you only see one trace, not two -- the Vb-Vc traces sits on top of the Vc-Va trace).
2. The two inductor voltages are 90 degrees out of phase from the transmission line voltage.

(click on image to enlarge)

Va is created by adding the voltage across L3 to the voltage-sample, Vc, and Vb is created by subtracting the voltage across L2 from the voltage-sample, Vc.

In this example with a resistive load, because the line current is in-phase with the line voltage, and even though one inductor voltage is being added to the voltage sample that is 90 degrees out of phase with it and the other subtracted from that same out-of-phase voltage, the resultant waveforms will still have the same magnitudes.

I've plotted these resulting voltages, Va and Vb, below.  Note that, because the load is a 50 ohm resistor (no reactance), Va and Vb are still 90 degrees out of phase from both the transmission line current and voltage.  And they are 180 degrees out of phase from each other, but their amplitudes are equal.

(click on image to enlarge)

Now let's change the load from 50 ohms resistive to 50 + j100 ohms (series inductance of 1.6 uH).  The voltage sample's phase with respect to the voltage generated across the inductors is no longer out of phase by 90 degrees.  And so when the inductor voltages are summed-with, or subtracted-from, the voltage sample, the resultant waveforms will have different amplitudes.

In the case of this particular reactive load, Va is now larger than Vb.

(Note that Va and Vb are still +/-90 degrees out-of-phase from the current (as they should be, given that the voltages across L2 and L3, by definition, are shifted from the line current by 90 degrees).

(click on image to enlarge)

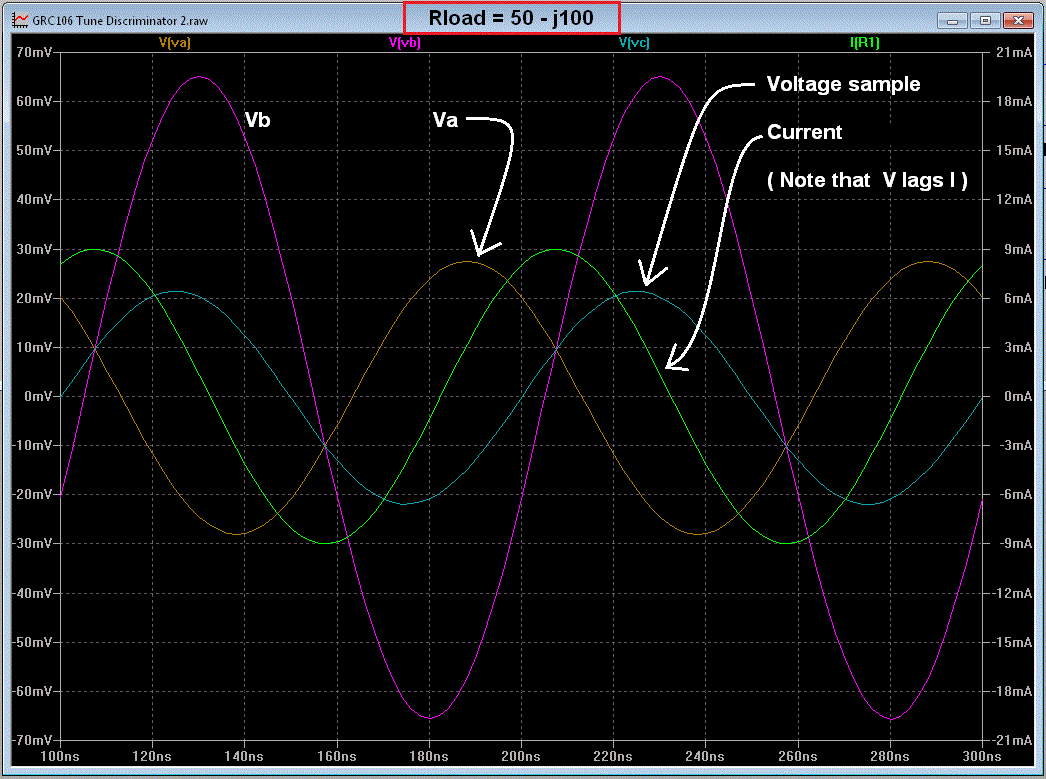

If I change the load to 50 -j100 (series capacitance of 160 pF), the line-voltage now lags the line-current, and Vb is now larger than Va.

(click on image to enlarge)

Two important notes regarding this type of phase discriminator:

1. For the 90 degree phase-shift to exist across the transformer's secondaries, the load across these secondaries should be high (i.e. ideally the secondaries would be unloaded).
2. And if the load across the transformer's secondaries is high, then the primary's inductance should be a small inductance so that it, itself, does not add additional phase-shift to the transmission line current.

I explain both of these points further in the Notes on Modeling Transformers section, below.

By the way, more details on the operation of the GRC-106 phase discriminator can be found in the Technical Manual (page 1-60).

And before I leave this topic, just a quick explanation regarding the math involved...

I can describe Va and Vb in terms of Vc, the voltage-sample (from the capacitive voltage divider), and Vi, the current-sample voltage induced across a secondary winding:

Where 'α' represents the phase shift between the two voltages (normally 90 degrees with a resistive load).

For the purposes of illustration, I'll keep the math simple and assume Vc = Vi = 1, which will allow me to apply the following trig identities:

Substituting 'xt' for 'u' and 'xt + α' for 'v' in the equations above, the result is:

The magnitudes of these two voltages are:

Clearly if α is 90 degrees (i.e. resistive load), these two magnitudes are equal (sin(45°) = cos(45°) = 0.707).  But as transmission-line voltage shifts in phase from transmission-line current, α will shift from 90 degrees (either towards 0 degrees or towards 180 degrees), and these two magnitudes will no longer be equal.

At the limit of α = 0 degrees, |Va| will be 2 and |Vb| will be 0.  And at the other limit of 180 degrees, |Va| will be 0 and |Vb| will be 2.

(And please note: you can also find the operation of this type of phase-discriminator described in terms of Phasors, below, in the Collins 180L-2 section).


The GRC-106 Load Discriminator:

The load-discriminator's operation is straight-forward.  Essentially, it's comparing the magnitude of the transmission line current-sample to the magnitude of the transmission line voltage-sample.  Note that these samples are first scaled so that, if the load has an impedance magnitude of 50 ohms, the magnitudes of the two samples are equal and no current flows through the meter on the front panel (i.e. no meter needle movement).

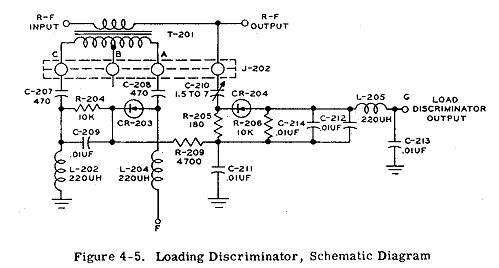

Here's the circuit:

(click on image to enlarge)

Transformer T1 creates the current sample, which is, in effect, a voltage representing the transmission-line current.

Knowing that the current through the 40 turn secondary of T1 is I/40, where I is the transmission-line current, and that the transmission line current equals V/Z, where V is the transmission-line voltage and Z is the load, then the voltage generated across  R3, the 39 ohms resistor, is essentially equal to V / Z (it's actually (39/40) * V / Z).

Diode CR2 creates a positive voltage magnitude, therefore the voltage at E2 (as defined in the schematic above) is equal to |V / Z|.

The capacitive voltage-divider (C1 and C2) generates the voltage sample.  C1 should be set so that the voltage across R1, when the load is 50 ohms, is equal in magnitude to the current-sample voltage across R3 (which should be about V / 50, where V is the transmission-line voltage).  Therefore, once C1 has been calibrated the voltage at E1 (as defined in the schematic above) will always be positive (due to CR1) and equal to |V / 50|, irrespective of the load impedance.

So, if the impedance of the load has a magnitude of 50 ohms (e.g. it could be 50+j0, 35+j35, 0-j50, etc.), then E1 will equal E2 and there will be 0 volts across the load meter.

But if |Z| < 50 ohms, E2 will be larger than E1 and the meter will deflect in one direction.

And if |Z| > 50 ohms, E2 will be less than E1, and the meter will deflect in the other direction.

The vertical green line drawn on the Smith Chart below identifies the loads whose impedance magnitude is 50 ohms.

(click on image to enlarge)

Additional details can be found in the Technical Manual (page 1-61).


2.  Icom AT-500 Automatic Antenna Tuner

The Icom AT-500 also has two detector blocks.  Again, one block (the Phase Detector) detects the difference in phase between transmission-line voltage and current, while the other block (the Load Detector) detects the departure of the load's resistance from 50 ohms.

Here's the schematic of the match-detector part of the AT-500 schematic.

(click on image to enlarge)

AT-500 Load Detector:

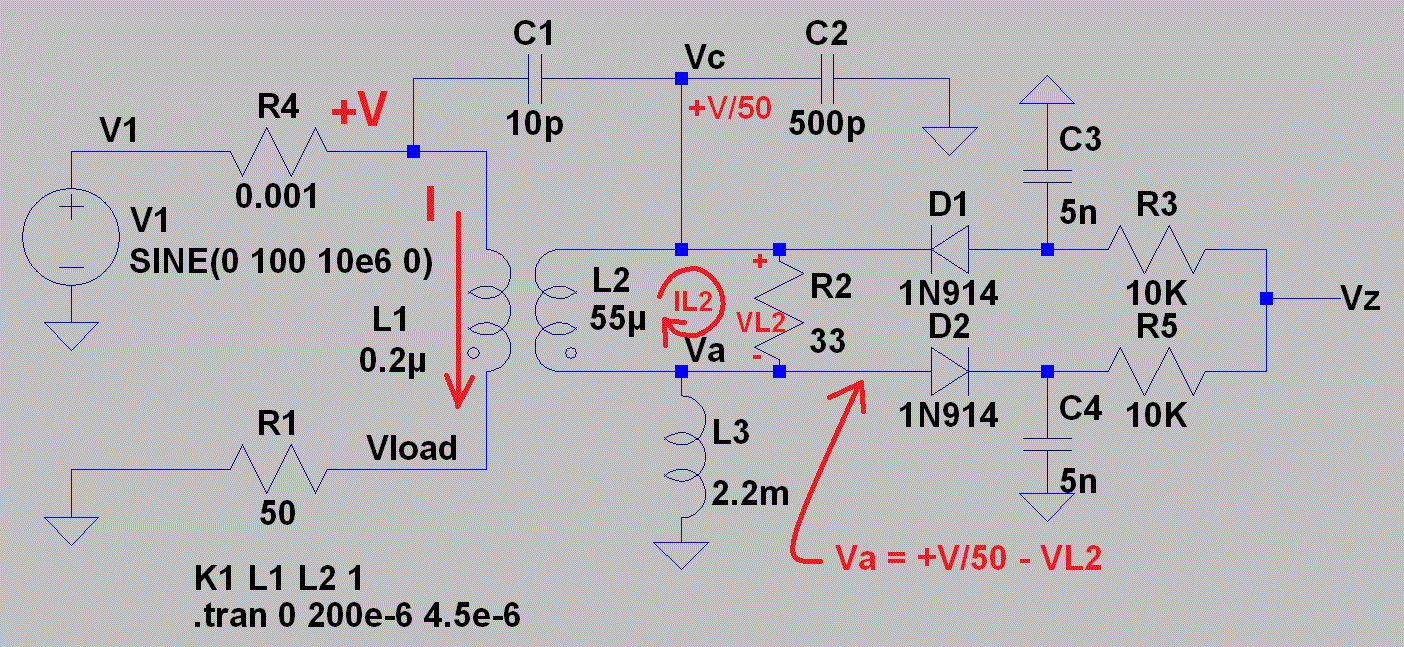

Let's first look at the AT-500's load detector.  I've redrawn this part of the schematic in LTSpice.

(click on image to enlarge)

This circuit measures the deviation of the resistance component of the load (i.e. the Rload component of Zload, where Zload = Rload + jXload) from 50 ohms.  So the circuit is a Resistance Detector, and it uses its signal to tune the output capacitor of a high-pass T-network.

Referring to the SPICE schematic, this circuit samples both the transmission line voltage and current and does the following:

1. Generates a negative voltage (Via D1 and C3 in the schematic above) that is equal to the magnitude of the peak of the voltage sample.
2. Generates a second voltage (this one positive), created by subtracting the current-sample voltage from the voltage-sample and then "positive-peak" detecting (via D2, C4) this summed voltage.
3. These two peak-detected voltages (one positive, one negative) are then connected together via a voltage divider formed by R3, R5.
4. If the positive peak-detector's output has the same value as the negative peak-detector's output, then the voltage Vz (at the midpoint of the voltage divider, see schematic below) will be 0 volts.
5. And if the voltage Vz is 0, the resistance component of the load impedance will be 50 ohms.

(click on image to enlarge)

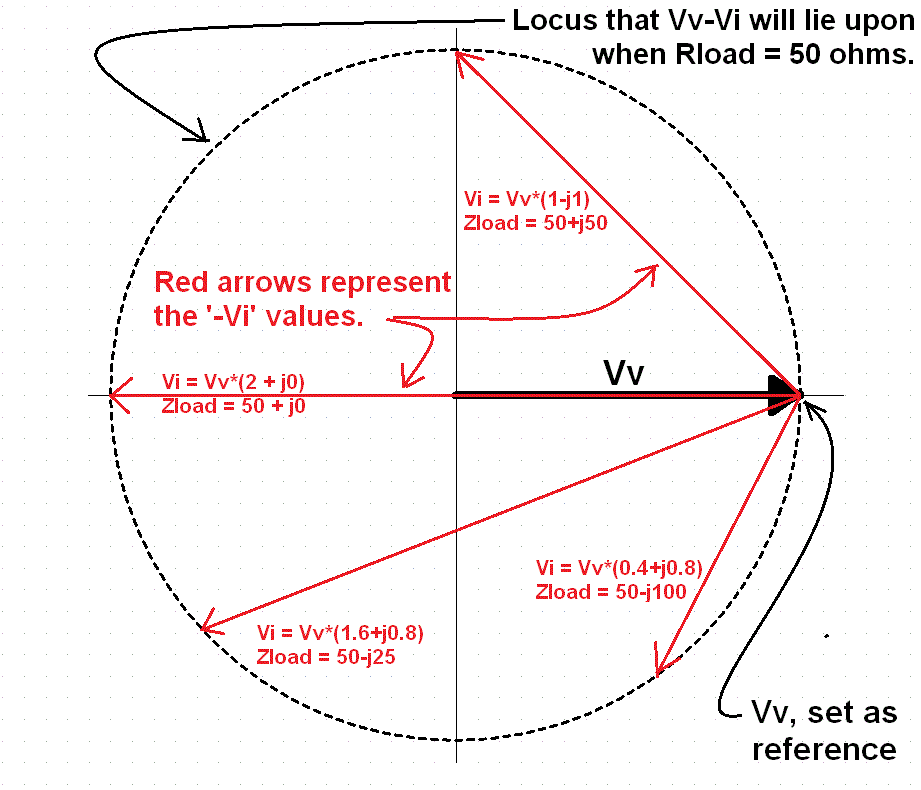

Let's look at why, when Vz is zero volts, the resistance component of Zload will equal 50 ohms.

Resistance Detectors of this type must satisfy the following equation when the resistance they are measuring is equal to their target resistance, Ro (for an explanation, see the  "G3GFC Resistance and Conductance Detectors, Behind the Veil"  section below):

1 = | 1 - (2*Ro)/Rload |     (equation A)

This result is independent of the load's reactance component.

In the SPICE schematic above, if the voltages and nodes Va and Vc have equal magnitudes, then the following is true:

| Vc | = | Vc - V*R2/(Zload*N) |      (equation B)

where:

• V is the transmission-line voltage
• Vc is the voltage-sample
• Zload is the impedance of the load (i.e. R1 in the schematic above).
• R2 is the resistance across the current-sense transformer's secondary winding.
• N is the turns ratio of the current-sense transformer.
• And the absolute value signs mean that the end results are magnitudes.

Vc, being the voltage-sample, is simply V/M, where M is the voltage division factor.

So Equation B becomes:

| V/M | = | V/M - V*R2/(Zload*N) |    (equation C)

Working with Equation C, I'm going to divide all terms by V (i.e. normalizing V to 1) and multiply both sides of the equation by M. Also, I will replace Zload with Rload, because I know that when the equation is true, Xload disappears (see discussion in: "G3GFC Resistance and Conductance Detectors, Behind the Veil", below).
The result is:

1 = | 1- (R2*M)/(Rload*N) |

Comparing this equation to Equation A, we can state that:

(2*Ro)/Rload = (R2*M)/(Rload*N)

or:

R2*M/N = 2*Ro     (equation D)

Ro is 50 ohms -- it's the target resistance.  And I know from the schematic that R2 is 33 ohms.  I'm going to guess that M (the voltage division) is about 50.  Plugging these two values into the equation above, I find that N must be 16.5 turns.  (I could change M slightly to make N an integer number, but let's use 16.5 for this discussion).

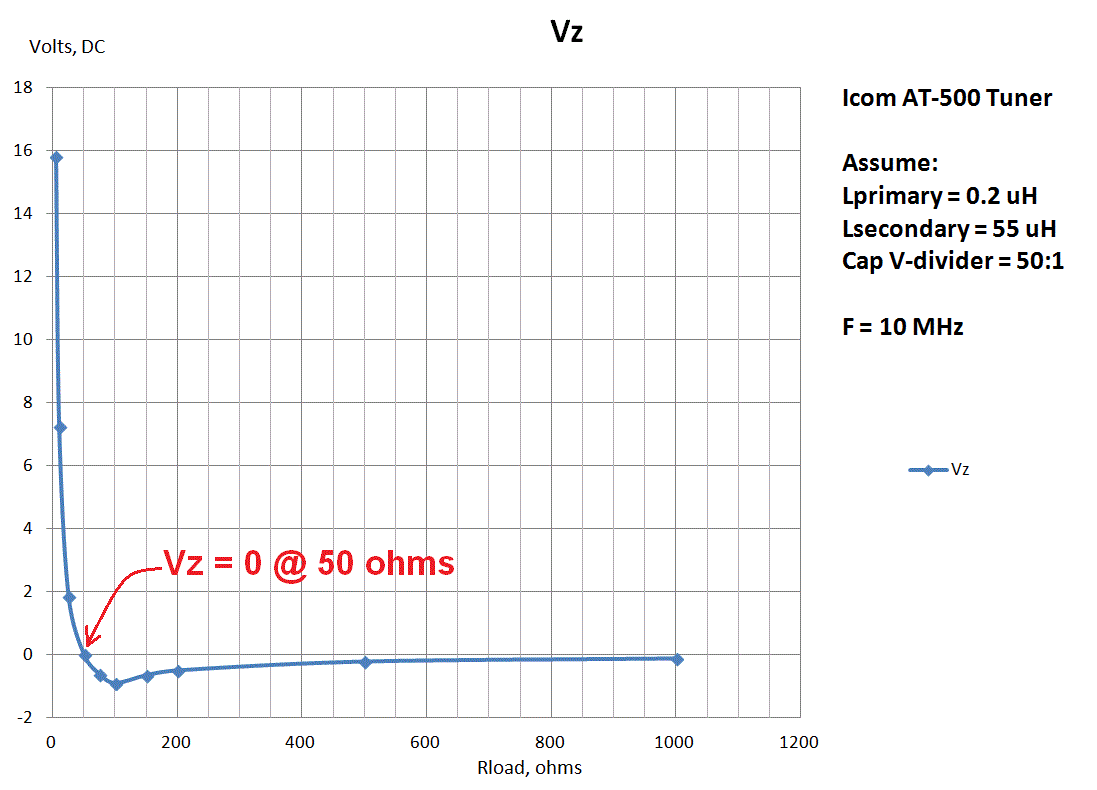

So I've plugged these values into my SPICE model above and run a few simulations with various load resistances and reactances.  The results:

1.  If the load has a resistance of 50 ohms, Vz is 0 volts, irrespective of the load's reactive component.

2.  If Rload is less than 50 ohms, Vz is positive, and if Rload is greater than 50 ohms, Vz is negative, but at a certain point Vz becomes less and less negative as Rload is made larger and larger.  This graph illustrates that effect:

(click on image to enlarge)

This effect is caused by the current sample becoming smaller and smaller (and eventually non-existent) as Rload increases (which makes sense: infinite load resistance would equal no current).  Little or no current means little or no current sample, and the equation:

| Vc | = | Vc - V*R2/(Zload*N) |

becomes

| Vc | = | Vc |

because the second term on the right side of the equation has gone to zero.

So, in effect, the negative peak-detector would be detecting -Vc, and the positive peak-detector would be detecting +Vc, and their midpoint (Vz) would be 0 volts.

A few other notes:

1.  It's important to recognize that L2, the 2.2 mH inductor, looks like a high-impedance to RF signals.  It is there to provide a DC path to node Vc.  Therefore, the AC voltage at node Vc will centered around 0 volts DC and diode D1 will peak-detect the negative peak of that voltage.

2.  Unlike the current-sense transformer in the GRC-106, this transformer does not have a 90 degree phase shift.  The low load value of 33 ohms keeps the phase of the transformer per the "phasing" dots in the schematic.  (Refer to the explanation in the "Notes on Modeling Transformers" section, below.)

OK, let's take a look at the AT-500's phase detector next...

AT-500 Phase Detector:

The AT-500's phase-detector is used to tune the high-pass T-network's Input capacitor.

I've redrawn the phase detector below.  All elements are NAND gates, but I've redrawn the the two pairs of cross-coupled NANDs as SR Latches, which is what they are.  And I've "De Morganed" the two 74S10 3-input NAND gates.

(click on image to enlarge)

I believe the timing diagrams are correct, but please correct me if I'm wrong.

By the way, this is a common phase-detector topology.  You can find it implemented in high-speed phase detectors such as the Micrel SY100EP140L.

(I haven't spent any time looking at how the two phase-detector outputs create the DC control signal.  But it looks to me that one phase-detector (driven by the current-sample) is generating a positive voltage via D4 (reference designator per the original Icom schematic), and the other phase-detector (driven by the voltage-sample) is generating a negative voltage (due to the positive voltage impressed upon C13 when clamped by D3 -- this voltage across C13 will force D3's anode negative when the the 74S10 output goes low).  More than that I can't say, and what I've already said could be wrong.)


3.  Yaesu FT-1000 Internal Tuner

The FT-1000 has an automatic antenna tuner.  I've found two different schematics of its Match Detection circuitry.

I'll start with the simplest version.  Here's a schematic of the FT-1000's Match Detector from this online manual.

This design looks at the load's impedance magnitude and the phase difference between transmission-line voltage and current.  But this design is probably the most basic of all, as it only generates two binary values:

1. Is the voltage-sample greater than the current-sample, yes or no?  (Yes = Q7404-1 pin 1  High).
2. Does the phase of the current-sample lag the voltage-sample, yes or no?  (Yes = Q7410-2 pin 8 High).

FT-1000 Impedance Detector:

The current sample is generated via current-sensing transformer.  Because the load on the secondary is only 24 ohms, there is no 90 degree phase shift (see explanation why in the "Notes on Modeling Transformers" section, below).

The voltage sampler is again a capacitive voltage divider.  The ratio is set up so that, when the load's impedance has a magnitude of 50 ohms, the output of the comparator (Q7404-1) should be just on the cusp of toggling.

Both the current sample and the voltage sample are first rectified (destroying any phase information) before they are applied to the comparator.  Their magnitudes are compared and the result signals if the magnitude of the impedance is greater than 50 ohms, or not.

FT-1000 Phase Detector:

The current and voltage samples are also used to detect phase.  Each is amplified and converted into a digital signal that feeds a D-type Flip-Flop.  The flip-flop's clock is driven by the voltage sample, and the D-input driven by the current sample.

If the current-sample is already high when the voltage-sample positive-going edge occurs (i.e. current leading voltage), a 0 will appear at the inverted-register output.  Therefore a 1 at this same output represents current lagging voltage.


Second Version:

Here's the second version of the Match Detection circuitry, from my personal Service Manual.  (I don't know which circuit is Yaesu's preferred revision).

(click on image to enlarge)

I've redrawn the phase-detector circuit.  Note that its output is no longer single binary signal, but instead it generates two positive analog voltages.  (I assume these will both feed an A/D convertor that is read by the microprocessor.)

(click on image to enlarge)

The "dual D flip-flop reset by a NAND gate" is a common phase-detector circuit, which you can also find implemented in IC chips (as, for example, the phase-detection block within a PLL chip).

I'm not clear, though, on the function of the second NAND gate that drives the D inputs via an inverter (open-collector NPN).  The NPN's inversion changes the NAND's function to AND, but it's ANDing low-pass filtered versions of the /Q outputs of the flip-flops.

So, for the phase detector to operate properly (D inputs high), both NAND inputs (and thus the low-pass filtered signals), must also be high -- at least 3.2V for 'AC logic, assuming 5V VCC.  Assuming the 'AC00 NAND gate has negligible input current (leakage current is spec'd around 1uA), this implies that the flip-flop /Q outputs must be high (and thus the Q outputs low) at least 3/5 of a clock cycle.

Perhaps this NAND circuit is an anti-lockup, or startup, or some sort of phase-disambiguation scheme?  Or...?  I don't know.  If you have an idea, send me a note!

The Impedance Magnitude detector is also different -- it, too, generates two negative analog voltages in lieu of the single binary value described above.  The circuit is straight-forward, so I'll just describe it in lieu of drawing it out, but you can see it in the photo of the schematic, above.

One output voltage is the magnitude of the transmission-line voltage sample (generated via a capacitive voltage divider, and then negative-peak detected).  The other voltage is the magnitude of the transmission-line current sample (the voltage generated across the current-transformer drives a negative-peak detector).

(Note, too, that there is also a directional coupler (Bruene variant) preceding this circuit (on the LPF board). I believe it's only used to drive the SWR and Power meters on the front panel, rather than for controlling the antenna tuner, but I could be wrong!).


4.  SGC-230 Automatic Antenna Tuner.

The SGC-230 has an interesting Match Detection scheme.  The circuit shown above performs the following functions:

1. Samples a small amount of the RF voltage to use for frequency detection by the microprocessor.
2. Generates Vfwd and Vref via the two-transformer Directional Coupler formed with one of T2's secondary windings (voltage sample) and T3 (current sample).  These two signals can be used to calculate SWR.
3. Generates a voltage related to the magnitude of the Load's impedance (Load Impedance Detector).  The other secondary winding of T2 generates a voltage sample and T1 generates a current sample.  Both are rectified. The delta between these (one is rectified to create a positive voltage, the other rectified to create a negative voltage) represents the relationship of the impedance magnitude to 50 ohms (positive = ">50 ohms", negative = "<50 li="" ohms="">
4. Generates a voltage representing the phase difference between the transmission-line voltage and current.  T1 provides the current-sample, while the voltage sample is taken from the transmission line via a 15 pf capacitor.

The Directional Coupler (for SWR) has been discussed elsewhere in my other posts (for example, go here:  http://k6jca.blogspot.com/2015/07/antenna-auto-tuner-design-part-5.html ).  So I'll skip it.

The Load Impedance Detector simply compares a voltage representing the magnitude of the line voltage (the voltage has been rectified) to a voltage representing the magnitude of the line current (this voltage has also been rectified).  The two voltages are connected together via a pair of series resistors whose values selected so that, when the load is 50 ohms, the voltage at the resistors' common-point is 0 volts.

The Phase Detector uses an SBL-1 Mixer to detect the phase difference between transmission line voltage and current, which is a perfectly acceptable method for phase detection.  After all, a mixer is, in essence, a multiplier, and if I multiply sin(xt)*sin(xt + a), where 'a' is the phase delta between the two sine waves, the result will be:

sin(xt)*sin(xt + a) = (1/2)*cos(a) + (1/2)*cos(2xt)

If we filter out the high-frequency cos(2xt) term, we're left with cos(a), which is a DC term representing phase.

But there's a problem, which you might be able to see in the equation above.  I'll see the same DC voltage if I shift the one of the signals one way, compared to if I shift it the other way by the same amount (i.e. shift by a phase of "a" or by "-a" ), because cos(-a) = cos(a).

Well that's not good, because I won't be able to identify a positive phase shift from a negative phase shift.

The way to get around this is to shift one of the signals by 90 degrees so that, when line-voltage and line-current are exactly in phase on the transmission line, the mixer sees them as being 90 degrees apart.

The equation then becomes:

sin(xt)*cos(xt + a) = (1/2)*sin(2xt) + (1/2)*sin(-a)

The "sin(-a)" is our phase term.  And now I can differentiate between a positive phase delta versus a negative phase delta, because the sign of the sin will flip for a positive 'a' versus a negative 'a'.

In the SGC implementation, the 15 pF capacitor shifts the voltage sample by 90 degrees.  The current sample has no additional phase shift.

One note regarding this circuit:  T1, the current-sampling transformer for the phase-detector, only has a turns ratio of 1:4.  Because its secondary is loaded with 16.5 ohms, this means that, effectively, a "reflected" resistance of 16.5/16 ohms (i.e. 1 ohm) is inserted into the primary of T1 -- that is, in series with the transmission line.

Thus, if implementing this circuit, I would put it closest to the transmitter (if also using either SWR or Impedance/Resistance/Conductance detectors).  Otherwise, the tuner-control circuitry will believe that this additional 1 ohm is part of the load, and it will try to compensate for it when, in fact, it cannot be compensated for, given that this additional series-R lies between the transmitter and the tuner's input and thus cannot be tuned away.

(By the way, if you're unfamiliar with the operation of diode-ring mixer, a good video describing its operation can be found on YouTube here ).


5.  The Collins 180L-2 and 180L-3 Automatic Antenna Tuners

The Collins 180L-2 and 180L-3 tuners use the same method of match detection as the GRC-106, described above.  There is a "Phase Discriminator" and a "Load Discriminator".

The Phase Discriminator determines if the load contains a reactive component (the goal being to tune out the reactive component so that the load looks resistive only), while the Load Discriminator compares the magnitude of the load's impedance against 52 ohms and generates a voltage that controls the tuning towards this goal.

Both combined, the ultimate goal is to tune the antenna so that it appears to be 52 ohms, resistive.

I won't go into further detail regarding its operation.  Rather, I include the relevant schematics and description-of-operation from the Collins' manual (found here ).

First, the Phase-Discriminator:

(click on image to enlarge)

And its explanation (cut-and-pasted from the GIF pages here):

(click on image to enlarge)

And now the Load Discriminator:

(click on image to enlarge)

And its explanation:

(click on image to enlarge)

6.  The G3GFC Match Meter

The G3GFC Match Meter is an interesting design that allows the operator to monitor three different parameters:

1. The resistance component of the load's impedance, compared to 50 ohms.
2. The conductance component of the load's impedance, compared to 20 millimhos.
3. The phase between transmission-line voltage and current.

Here's the basic circuit (schematics and additional information can be found here:  http://www.g3ynh.info/zdocs/m50/).

(click on image to enlarge)

G3GFC Resistance Detector:

First, let's look at the Resistance Detector.  I've drawn a SPICE model:

(click on image to enlarge)

This circuit is actually very similar to the ICOM AT-500's Resistance Detector.  But there are a few differences:

Rather than detecting the negative peak of the voltage sample, this circuit detects the positive peak.  This is done to ensure that when Rload = 50 ohms, the two voltages driving the meter (the meter's zero = center-scale) are equal to each other and thus there is no meter deflection -- that is, no current flow through the meter.  By comparison, the ICOM AT-500 circuit's voltages are equal and opposite so that the resulting voltage, Vz, will be 0 under the same conditions).

(And note:  although the current-sample transformer's secondary consists of two coils, in this application these two coils essentially form a secondary that's a center-tapped winding of 20 turns, with 100 ohms across the 20 turns (well, actually 94 ohms across the secondaries, per the original schematic, but that's essentially 100 ohms)).

Additional information describing this circuit's operation can be found in the section below: "G3GFC Resistance and Conductance Detectors, Behind the Veil".

Do the component values in the G3GFC schematic satisfy the earlier equation (equation D) from the AT-500 analysis?  That is, is the following equation true (note that I'm using the two 47 ohm resistors as the secondary's load)?

(47 + 47)*M/N = 2*Ro

Ro is 50 ohms.  The voltage division ratio is 20 (I've "tuned" the original schematic's potentiometer to be so), and the transformer turns ratio is also 20.  So:

(47 + 47)* (20/20) = 2*Ro

Well, if Ro were 47 ohms, we've satisfied the equation!  (This is why I made the secondary's resistors each 50 ohms in my SPICE model, so that Ro would be 50 ohms).

G3GFC Conductance Detector:

Let's next look at the circuit when it's functioning as a Conductance Detector.

Here's an equivalent schematic:

(click on image to enlarge)

I also describe this circuit in more detail in "G3GFC Resistance and Conductance Detectors, Behind the Veil", below.  Suffice to say, when the appropriate signals (Vb and Vi in the schematic above) are rectified with positive-peak detectors, they will be equal when the load's Conductance is 20 milliMhos, irrespective of the load's Susceptance.

(Note that 20 milliMhos is equivalent to 50 ohms if there is no reactance).

G3GFC Phase Detector:

The phase detector is actually similar in operation to the GRC-106 phase discriminator, but with one difference -- the GRC-106 shifts the current sample by +/-90 degrees (via the Mutual Inductance between the primary and secondary windings) and adds these two signals to the voltage sample, which has 0 degrees of phase shift.

In other words, in the GRC-106 the two current samples are 180 degrees out of phase with each other, and each is 90 degrees out of phase with the voltage sample (one +90 degrees, the other -90 degrees).

The G3GFC detector instead shifts the voltage sample by 90 degrees, and then adds this shifted sample to the two current samples that are at 0 and 180 degrees.

So again, the two current samples are 180 degrees out of phase with each other, and each is 90 degrees out of phase with the voltage sample (one by +90 degrees, the other by -90 degrees).

Therefore the circuits are functionally equivalent.  They just differ with respect to which signal is shifted.

G3GFC circuit shifts the voltage phase via an RC circuit.  The value of the capacitor is switched, depending upon frequency range, to ensure a 90 degree phase shift.

The frequency of the RC circuit's "pole" frequency (1/(2piFRC)) is kept high to ensure that, at the frequencies of interest, the voltage-sample phase shift is kept near 90 degrees.  And although the smallest cap (e.g. 10 pF) would ensure a 90 degree phase shift across all frequencies of interest, at the lowest frequencies there would be too much attenuation of the voltage. Thus, the capacitance value is switched for different frequency-bands of operation.  Even so, the voltage magnitude increases at 6dB per octave as the frequency increases in the region of the 90 degree phase shift.


7.  W8MQW Tuning Detector

The November/December 2016 issue of QEX has a good article by Charles MacCluer, W8MQW, in which he describes a very interesting technique of Resistance Detection ("How to Tune an L-Network Matchbox," by Charles R. MacCluer, W8MQW).

(Note, too, that I have a "Letter to the Editor" published in the March/April 2017 issue of QEX, regarding the extension of W8MQW's technique to the "other half" of the Smith Chart.  This letter echoes my comments, below).

(Click on image to enlarge)

Unlike the resistance-detectors discussed earlier in this post (which compare the magnitudes of voltages), W8MQW's method detects the phase difference between the transmission-line current and the reflected voltage at a point on the line.  If this difference is 90 degrees (i.e. they are in quadrature), then the impedance seen on the transmission line, at that point, will have a resistive component equal to 50 ohms.

To accomplish this, a directional coupler (e.g. the Tandem Match dual-transformer coupler) creates Vr, and the current-sample is created with a separate current-transformer in-line at the transmission line's sample point.

Vr and the current-sample then drive a phase detector, whose output is 0 when these two samples are in quadrature.

W8MQW's technique is a novel one that I had not yet seen and its derivation impressed me.  Let's look at the theory behind it...

Consider a transmission line with Forward and Reflected waves.  At any point on this transmission line (even if the transmission line length is vanishingly short)  the voltage across that point and the current through the same point are a function of these forward and reflected waves, in which the voltages of the forward and reflected waves add, while the currents of these two waves subtract.  (Note that current of either the Forward wave or the Reflected wave, at any point on a transmission line, is simply the voltage of that specific wave at that point, divided by the transmission line's characteristic impedance, Zo).

V = Vf + Vr

I = If - Ir = Vf/Zo – Vr/Zo

So, for a transmission line whose Zo is 50 ohms, the equation for current becomes:

I = Vf/50 – Vr/50

Using Ohm's law, we can calculate Z at the measurement point:

Z = V/I = (Vf+Vr)/(Vf/50 – Vr/50)

and therefore:

Z = 50*(Vf + Vr)/(Vf-Vr)      Eq. 1

Now, assuming an LsCp (series-L, parallel C) L-Network as our antenna tuner, our goal is to first tune the network, using Cp, until the resistive component of Z is 50 ohms.  The transformed-impedance will then lie upon the Smith Chart's 50-ohm resistance-circle and we can then complete our tuning by adjusting Ls to move the transformed impedance along this circle (reducing the reactive component) until the final transformed impedance is 50 ohms, resistive.

In other words, using Cp, we first want to transform the original impedance, Z = R + jX, to Z’ = 50 + jX’.

Below is an example demonstrating this tuning technique.  (And if you'd first like to brush up on Smith Charts, click here:  Smith Chart Tutorial).

Let's assume Zload = 25+j50 ohms.  We would first tune Cp to transform this load impedance so that the transformed-impedance lies upon the 50-ohm circle, and then we would use Ls to move along that circle to our final value of 50 ohms:

But to know when we are on the 50-ohm resistance circle, we need a 50 ohm resistance detector.

Earlier in this post I described several 50-ohm resistance detectors, and each of those could be used to accomplish this tuning.  But W8MQW's circuit is an interesting variant and worthwhile investigating further.

If we had a circuit that measured Z' and also subtracted 50 from that value, then, if the result were solely reactive (i.e. imaginary, without a "real" component), we would know that the resistive component of Z' had been adjusted to be 50 ohms.

Let's call that result Zm.  In other words:

Zm = Z' - 50

Assume the variable cap Cp is adjusted so that Z' = 50 + jX', then by substitution

Zm = (50 + jX') - 50

and therefore:

Zm = jX'

So if we've adjusted the tuning network until the resistive part of the transformed impedance Z' is 50 ohms, Zm's resistance term will have been zeroed and Zm will be solely reactive.

But how can we measure Zm and determine when it has become solely reactive?  Let's first go back to our original equation for Zm:

Zm = Z' - 50

Substituting into it equation 1, this becomes:

Zm = 50*(Vf + Vr)/(Vf – Vr) – 50

Expressing this with a common denominator:

Zm = 50*(Vf + Vr)/(Vf-Vr) – 50*(Vf-Vr)/Vf-Vr)

And then adding and canceling terms, the final result is:

Zm = 100Vr/(Vf-Vr)

OK, we can find Zm by measuring Vr and Vf-Vr (line current).  But what do we look for?

Remember, Zm equals jX' when we've tuned Z' to have a 50 ohm resistive component:  Zm is pure reactance, whose units are ohms.  So we can consider the value we measure to have an Ohm’s Law relationship:  Z = V/I:

Zm = 100Vr/(Vf-Vr) = V/I

And therefore we can say that V is proportional to Vr (the numerator) and that I is proportional to Vf-Vr (the denominator).

Why is this important?  If Zm consists of only a reactive component, then we know that its V and I must be 90 degrees out of phase.

In other words, if we measure Vr and we measure (Vf-Vr) and we find them to be exactly 90 degrees out of phase, we know that Zm has no real component and therefore the impedance Z’, as measured at that point of the transmission line, has a real component of 50 ohms.

As for the factor of 100 in Zm’s equation – that isn’t important with respect to the angle of Vr compared to (Vf – Vr).  That angle will always be 90 degrees as long as the resistive component of Zm is 0 ohms (and as long as there is some reactance), irrespective of any multiplication of Zm by a scalar, be it 100 or some other value.  (That is, any imaginary number, multiplied by N will still be an imaginary number).

But this tuning technique only covers load impedances in half of the Smith Chart.  That is, it covers the yellow half shown below, which is the half tunable with an LsCp L-network.

For impedances in the "white" half of the Smith Chart, we would instead want to first tune them (using Ls) so that the transformed admittance lies on the 20 millimho conductance circle, rather than the 50 ohm resistive circle.  Then, using Cp, we would tune to reduce the susceptance, moving along the 20 millimho circle until we reach 20 millimho (50 ohm) center.

We can use W8MQW's technique to derive (in terms of admittance) a way to measure if we are on the 20 millimho circle:

Remember that Y = I/V, and its unit of measurement is mhos.

Y consists of a real part (conductance) and an imaginary part (susceptance):

Y = G + jB.

To use W8MQW's two-step tuning process, we would first want to tune the network transform the load's conductance to to 20 millimhos.  The resulting transformed admittance will lie on the 20 millimho reactance circle.  That is, the load admittance will have been transformed from:

Y = G + jB

to:

Y' = 0.02 + jB'

Let’s subtract 20 millimhos from Y and call the result Ym:

Ym = Y - 0.02

This equation should result in a purely imaginary number if G has been first tuned to be 0.02.  In other words, when G has been tuned to be 0.02, Y = Y' (per the equation above), and therefore:

Ym = Y' - 0.02 = jB'

We know that Y = I/V.  How can we express the Ym relationship in terms of Vr and Vf when G has been tuned to be 0.02 mhos?

Ym = I/V – 0.02 = (Vf/50 - Vr/50)/(Vf + Vr) – 0.02

which is equivalent to:

Ym = 0.02(Vf - Vr)/(Vf + Vr) – 0.02

Manipulating, the final result is:

Ym = -0.04Vr/(Vf + Vr)

So -- although we still use a Vr sample for our measurement, we now compare its phase against a voltage sample (Vf+Vr), rather than the current sample (Vf-Vr) previously used to determine if the transformed impedance is on the 50 ohm circle.

G is 0.02 when Ym is solely reactive, without a real component.  So this time, we would first tune Ls until Vr is 90 degrees out of phase from the voltage sample, Vf + Vr (meaning that G is 0.02).  And then we would tune Cp until Vr is 0 (SWR = 1:1).

Here's a conceptual drawing of what a 50 ohm and 20 millimho detector might look like, based upon W8MQW's design:

(Click on image to enlarge)

(Drawing is conceptual only -- termination resistors may want to be in series, rather than parallel, depending upon Phase Detector requirements.  Note, too, that the Current Sampler and Voltage Sampler terminations do not necessarily need to be 50 ohms, but again, this will depend upon the Phase Detector requirements as well as what the designer would like their "reflected" resistances (as seen by the transmission line) to be.)


Other Notes on Match Detection:

Issues with separate Phase-Detection and Load-Detection Blocks:

Sometimes there can be hiccups when using separate phase and load detection circuits.

When my Icom AT-500 attempts to tune a load that's not within the range of loads it can match, sometimes the match it finds is worse than the best match available -- I've watched it tune through an SWR minima and end up at a tuning setting with a higher SWR.

I haven't analyzed exactly what happens in this case, but here's my guess:  the Phase-detector circuit is trying to drive the tuning  to its match-point and the Resistance detector is also trying to drive the tuning to its match point, but one or both of these circuits can't get all the way to their respective match point (perhaps due to interaction with the other tuning) and the result ends up worse than it should be, because the two detectors operate independently of each other.

One way around this might be to also monitor SWR and use that SWR to moderate the load and phase detectors' actions.


Notes on Modeling the Transformers:

Here are some notes reviewing the modeling of transformers.

A transformer is really just coupled inductors.  Let's look at a model of the basic coupled-inductor:

Drawn with these voltage polarities and current directions, the voltage and current relationships are:

V₁ = jωL₁* I₁ + jωM * I₂

V₂ = jωM * I₁ + jωL₂ * I₂



Where: ω = 2* π * Frequency

In actual use, though, where one coupled inductor is driven and the other attaches to a load, it's more conventional to draw the voltages and currents as follows (note the relationship of the phasing dots):

Note that  I₂ is flowing in the opposite direction, from the positive terminal of L2, compared to the previous drawing.

Because the direction of I₂ is reversed, we need to flip the sign of the I₂ components in the previous equations, which now become:

Equation 1:  V₁ = jωL₁* I₁ - jωM * I₂

Equation 2: V₂ = jωM * I₁ - jωL₂ * I₂

Manipulating these two equations results in the following voltage gain relationship:

We can express this relationship in terms of N₁ and N₂, the number of turns of each inductance's winding.  If the inductors are tightly coupled, they will be on a common core with identical dimensions.  We can replace L₁ and L₂ in the above equation with their inductance equations...

We could also solve the equations for the current-gain.  The result is:

For the purposes of understanding how the current-sense transformer in a Phase Discriminator creates a voltage with a 90 degree phase shift, let's derive the equation for the secondary's voltage in terms of the primary's current:

(The 'j' term in the above equation means that V₂ and I₁ are 90 degrees out of phase.)

This is an important conclusion.  If we assume that the load impedance (Zl) is significantly larger than the reactance of the secondary's impedance ( jωL₂ ), then the voltage at the "secondary" of the transformer will be shifted by 90 degrees from the phase of the primary's current!

(By the way, you can see this 90-degree relationship applied in the Bird Wattmeter, here).

On the other hand...

Note that if Zl is resistive and appreciably less than the reactance of the secondary's impedance (jωL₂), there is no longer a phase shift between primary current and secondary voltage!

Finally, let's determine the impedance seen across the primary winding when a load, Z_l, is connected across the secondary:

for tightly coupled inductors, this equation becomes:

and we can simplify it further, with two different conclusions...

The first reduction above is simply the reflection of Z_l (divided by the square of the turns ratio) to be the primary's impedance.

And the last equation signifies that, if there is no load attached to L₂, then it's as if L₂ isn't there and L₁ simply looks like itself, an inductor.

What does this mean?

If the current-sense transformer has a high-impedance load attached to its secondary (so that it creates the 90 degree phase shift), its primary inductance could add phase-shift to the transmission line and thus affect the SWR.

To minimize this unwanted effect, if the reactance of L₁ is kept to, say, 5 ohms (1/10th of 50 ohms) at the highest frequency, 30 MHz, then the SWR will only shift from 1:1 to 1.1:1.

But 5 ohms at 30 MHz is an inductance of 26 nH.  Very small!!
(Note:  10 ohms of added reactance will shift a 1:1 SWR to 1.2:1, 20 ohms to 1.5:1).

For analysis purposes, Mutually-Coupled Inductors can also be represented by a T-network equivalent circuit.  All of the above equations could be derived using this model in lieu of the two coupled inductors:

A quick note on multiple secondaries...

If there is a single primary, the current through this primary must equal the sum of the currents in all of the secondary windings, multiplied by their turn ratios.  E.g. for a three-secondary transformer:

Ip = Is1*N1 + Is2*N2 + Is3*N3

In the above examples, some of the transformers have had two equal secondary windings ('N' turns-ratio, each) with identical loads across each winding.  Therefore the current in each secondary is the same:

Ip = Is1*N1 + Is2*N2 = 2*Is*N

And therefore the current in each secondary is:

Is = Ip/(2N)

G3GFC Resistance and Conductance Detectors, Behind the Veil:

How do these circuits work?

Let's first look at a Resistance Detector.

Resistance Detector Analysis:

Here's the basic circuit.  I've added the important voltages and currents.  I'll analyze this as a basic lumped-element circuit:

(click on image to enlarge)

Vv is the voltage sample of the Transmission Line voltage and Vi is the voltage generated by the current sample of the Transmission Line's current.

If we connect Vv to a diode peak-detector, the output would represent |Vv| (the magnitude of Vv).

Similarly,  if connect the "Vv - Vi" node to a diode peak-detector, its output would represent |Vv - Vi| (the magnitude of the voltage "Vv - Vi").

Let's examine more closely what happens when the two magnitudes are equal, which, per the circuit's intent, is supposed to occur when the resistive component of the load impedance, Zload, is 50 ohms:

|Vv| = |Vv - Vi|    (equation 1)

First, a few definitions:

• I = V/Zload = V/(Rload + jXload)
• Vv = V/M, where M is the voltage division ratio defined by Z1 and Z2.
• Vv has 0 degrees phase-shift with respect to V.
• The secondary's current has 0 degrees phase shift additional phase shift with respect to the primary's current.

From the schematic above, we know that Vi = Rt*(I/N).  Substituting V/Zload for I in this equation, the result is:

Vi = V*Rt/(N*Zload)    (equation 2)

And so, also knowing that Vv = V/M, equation 1 can be rewritten as:

|V/M| = |V/M - V*Rt/(N*Zload)|

Divide by V (i.e. normalize to V) and multiply by M:

1 = |1 - Rt*M/(N*Zload)|    (equation 3)

What should the values of Rt, M, and N be?

Let's look at the case when Zload is resistive (only Rload, no Xload), so that there's no additional phase-shift between Vv and Vi.  And let's set Rload equal to our "desired" value, Ro (e.g. 50 ohms).  Equation 3 becomes:

1 = |1 - Rt*M/(N*Ro)|

Given that Rt*M/(N*Rload) is a positive quantity, the only way that this equation can be satisfied is if:

Rt*M/(N*Ro) = 2

In other words:

Rt*M/N = 2Ro    (equation 4)

If I know Ro (and I do, it's 50 ohms in my case), this equation defines how I will select Rt, M, and N.

And knowing this relationship, let's rewrite equation 3:

1 = |1 - 2Ro/(Rload + jXload)|    (equation 5)

Next step:  determine what values of Rload and Xload satisfy this equation.

The math here gets messy (long equations with some quantities to the fourth power) so I'll leave it as an exercise for the reader and instead I'll jump to the conclusion:  For equation 5 to be true, the following condition must be true:

Clearly the second factor cannot be 0, because that would mean that Rload, Xload, and Zload were all 0, and we would be dividing by 0 in our equations above.

Therefore the first factor, (Ro - Rload) must be 0.  Which means:

Ro = Rload

for equation 5 (and the earlier equations) to be true.  In other words, Rload (the resistive component of Zload) must be equal to 50 ohms (if Ro = 50).

And thus we have a Resistance Detector!

This detector, if setup such that Ro = 50 ohms, will indicate a match whenever the load impedance lies on the Smith Chart's "50 ohm Circle of Constant Resistance."

(click on image to enlarge)

By the way, here's a way to visualize the detector's voltages:

(click on image to enlarge)

Resistance Detector Operation with respect to Forward and Reflected Waves:

Note, too, that we can also examine operation of this detector with respect to forward and reflected waves on a transmission line, rather than as a lumped-element circuit.

Let's measure voltage and current at a point (any point) on a transmission line (even a transmission line that might be vanishingly short!).   Forward and Reflected Voltages (Vf, Vr) add at that point, while Forward and Reflected currents passing through that same spot subtract.

In other words:

V = Vf + Vr

I = Vf/50 - Vr/50

where the 50 in the equation above is the impedance of the transmission line (i.e. Ir = Vr/Zo).

If the resistive component of the load impedance is 50 ohms, then Equation 1 (from earlier in this post) should be true.  We can rewrite Equation 1 by substituting the two identities above into it:

|(Vf + Vr)/M)| = |(Vf + Vr)/M - Rt*(Vf/50 - Vr/50)/N|

For sake of simplicity, if we assume that M = N, then from Equation 4, Rt should be 100 and the equation above reduces to:

|Vf + Vr| = |3Vr - Vf|

Note, too, that Vr = Vf*Γ (where the reflection coefficient, gamma, is equal to (Zload-50)/(Zload+50) in a 50 ohm transmission-line system).

So this equation becomes:

|Vf*(1 + Γ)| = |Vf*(3Γ - 1)|

We can cancel out Vf, and therefore, if the load has a resistive component of 50 ohms, the following equation must be satisfied:

|1 + Γ| = |3Γ - 1|

Expressing this relationship in terms of Zload (by substituting Γ = (Zload-50)/(Zload+50) into the equation above), then, for the circuit to be "in balance":

|Zload| = |Zload - 100|

It is easy to show by example that the equation above is satisfied when the resistive component of Zload is 50 ohms -- e.g. let Zload = 50 + j200 (Γ = 0.8 + j0.4).  But not so easy for me to prove as a general case mathematically!

(Note that the above discussion assumes M = N, for the sake of simplicity).


Now let's look at the Conductance Detector.

Conductance Detector Analysis:

The conductance detector is analyzed in a similar fashion, but the basic equation is now:

|Vi| = |Vi - Vv|    (equation 1')

(Note that this is identical to:  |Vi| = |Vv - Vi | ).

(click on image to enlarge)

Again, Vv is the voltage sample of the Transmission Line voltage and Vi is the voltage generated by the current sample of the Transmission Line's current.

If we connect "-Vi" to a diode peak-detector, the output would represent |Vi| (the magnitude of Vi).

Similarly,  if connect the "Vv - Vi" node to a diode peak-detector, its output would represent |Vv - Vi| (the magnitude of the voltage "Vv - Vi").

Let's examine more closely what happens when the two magnitudes are equal:

Again, a few definitions, but now in terms of Conductance:

• I = V/Zload = V*Yload = V*(Gload + jBload)
• Note:  Gload = Rload/(Rload^2 + Xload^2), Bload = -Xload/(Rload^2 + Xload^2)
• Vv = V/M, where M is the voltage division ratio defined by Z1 and Z2.
• Vv has 0 degrees phase-shift with respect to V.
• The current-sense transformer's secondary current has 0 degrees phase shift additional phase shift with respect to the primary's current.

From the SPICE model  schematic, Vi = I*Rt/(2N).  Let me make some substitutions into equation 1':

|I*Rt/(2N)| = |I*Rt/(2N) - V/M|

Replacing I with V*Yload:

|V*Yload*Rt/(2N)| = |V*Yload*Rt/(2N) - V/M|

Normalize with respect to V:

|Yload*Rt/(2N)| = |Yload*Rt/(2N) - 1/M|

which is equivalent to:

1 = |1 - (1/M)*(2N/(Yload*Rt))|    (equation 2')

Let's consider what happens to this equation when Yload = Go, our "target" inductance.

1 = |1 - (2N/(M*Rt))*(1/Go)|

N, M, Rt, and Go are all positive, real, values.  Therefore the only way that this equation can be satisfied is if:

(2N/(M*Rt))*(1/Go) = 2

Restated:

2N/(M*Rt) = 2Go    (equation 3')

and thus:

N/(M*Rt) = Go     (equation 4')

The latter equation allows us to select values for N, M, and Rt given a Go value (Go = 0.02 Mhos in 50 ohm systems).

Let's substitute equation 3' back into equation 2'.  The resulting equation is:

1 = |1 - 2Go/Yload|

or

1 = |1 - 2Go/(Gload + jBload)|     (equation 5')

I can identify the values of Gload and Bload which satisfy this equation in exactly the same way as I did for the Resistance Detector, above.  At the end of some complex equations and much reduction thereof, the result is the equation 5' is satisfied by the following equality:

Gload = Go

In other words, this Conductance Detector will indicate a match whenever the load conductance (Gload) is equal to Go (which, in the example of a 50 ohm system, would be 20 milliMhos).

Here's a Smith Chart showing the circle of "constant-conductance" equal to 20 milliMhos:

(click on image to enlarge)

Using Resistance and Conductance Detectors

How can we make use of the Resistance, Phase, and Conductance information?

First, recall the Smith Chart regions that the two low-pass L-Network topologies cover:

(click on image to enlarge)

What I find interesting about Phase, Resistance, and Conductance detectors is that, if I measure these three parameters with no tuner in-line (i.e. the tuner first placed into bypass mode), I should immediately know in which one of six Smith-Chart "regions" the load lies, and thus I should know (without guessing) if the L-Network topology should be LsCp or CpLs:

And I will also know if I should be using the Conductance detector for my tuning (i.e.CpLs topology) or the Resistance Detector (i.e. LsCp topology).

(Note:  to use the phase identifications in the plot above (where '+' = upper half of the Smith Chart and '-' = the lower half), the phase detector must be designed such that an inductive load (V leading I) gives a positive phase and a capacitive load (I leading V) a negative phase).


OK, that ends my exploration of Match Detectors!

The previous post in this series, part 5 (Directional Coupler Design) can  be found here.

And the next blog post, which describes the first phase of the actual build, can be found here.


Links to my blog posts in this Auto-tuner series:

Part 1:  Preliminary Specification

Part 2:  Network Capacitor Selection

Part 3:  Network Inductor Selection

Part 4:  Relays and L-Network Schematic (Preliminary)

Part 5:  Directional Coupler Design

Part 6:  Notes on Match Detection

Part 7:  The Build, Phase 1

Part 8:  The Build, Phase 2 (Integration of Match Detection)

Part 9:  The Build, Phase 3 (Incorporating a Microcontroller)

Part 10:  The Final Schematics



Resources:

•  Book, Single-Sideband Systems & Circuits, (Chapter 16, "Antenna Matching Techniques"), Sabin and Schoenike, McGraw-Hill, 1987  (Discussion of tuning via phase and load error).
• Article, "Automatic Tuning of the Antenna Coupler," Knoop, QST, Aug., 1952.  (Tuning via phase-discrimination),
• Article, "Automatic Mobile Antenna Tuning," Hargrave, QST, May, 1955.  (Only uses phase-discrimination, but nice summary of the theory).
• Article, "Automatic Antenna Tuning for the Amateur," Hutton, QST, Dec., 1956.  (Uses both phase-discrimination and impedance discrimination).
• Article, "Mobile Antenna Matching -- Automatically!", Johnson, QST, Oct., 1982. Feedback -- QST, Dec, 1982. (Tuning via phase-discrimination).
• Article, "Automatic Tuning of Antennae," Underhill, Lewis, The SERT Journal, Sept., 1974:  http://www.g3ynh.info/zdocs/refs/Underhill/Underhill_Lewis_1973.pdf
• Article, "A 1.8MHz Autotuning Vertical Antenna," Kalmeijer: http://www.robkalmeijer.nl/techniek/electronica/radiotechniek/hambladen/radcom/1986/11/page766/index.html  (Phase discrimination, but interesting design.  Note the low-R values on current-sense transformer secondary.  No phase shift there -- must be via the voltage-sense R-C *****)
• Article, How to Tune an L-Network Matchbox," MacCluer, QEX, Nov/Dec 2016
• Article, "How to Tune an L-Network Matchbox (Letters to the Editor)", Anderson (K6JCA) QEX, Mar/April 2017

• Manual, Maintenance, AN/GRC-106, TM 11-5820-520-34: http://www.noorloos.nl/unimog/downloads/GRC-106/Other/ANGRC-106.pdf
• Manual, Operator, FT-1000, Yaesu (includes schematics):  http://www.radiomanual.info/schemi/FT1000_user.pdf
•  Manual (partial), Collins 180L-2/3 Autotuner (in GIF format): http://www.g3ynh.info/atu/180L3/man.html, and a description of the tuner: http://www.g3ynh.info/atu/collins180L.html
• Manual, MAC-200 AutoTuner, SGC: http://www.sgcworld.com/Publications/Manuals/mac200man.pdf

• Schematic, Detector System, SGC-230:  http://www.g3ynh.info/atu/sgc230.html
• Schematic (and Description), "The Match Meter":  http://www.g3ynh.info/zdocs/m50/

• Equations, "Magnetically Coupled Circuits," EE221, UNLV:  http://www.egr.unlv.edu/~eebag/EE-221-Mutually%20Coupled%20Circuits.pdf (Nice summary of transformer/coupled-inductor equations).
• Equations, "Coupled Inductors as Transformers" :  http://analog.intgckts.com/passives/coupled-inductors-as-transformer/  (Another nice summary.  Includes the T-model equivalent circuit).

• Webpage, Magnitude-Difference Bridges (Part 1), G3YNH: http://www.g3ynh.info/zdocs/bridges/magdiff/part1.html (Primarily comparison of |V| and |I|).
• Webpage, Magnitude-Difference Bridges (Part 2), G3YNH: http://www.g3ynh.info/zdocs/bridges/magdiff/part2.html (Discusses summing V and I samples prior to rectification).

• Video, Diode Ring Mixer Tutorial: https://www.youtube.com/watch?v=junuEwmQVQ8&feature=youtu.be

Links to my Directional Coupler blog posts:

Notes on the Bruene Coupler, Part 2

Notes on the Bruene Coupler, Part 1

Notes on HF Directional Couplers

Building an HF Directional Coupler

Notes on the Bird Wattmeter

Notes on the Monimatch

Notes on the Twin-lead "Twin-Lamp" SWR Indicator

Calculating Flux Density in Tandem-Match Transformers

And:

Smith Chart Tutorial


Other references of generally interest:
http://www.g3ynh.info/zdocs/bridges/Xformers/part_1.html  great discussion on current-transformers for directional coupler applications

http://www.g3ynh.info/zdocs/bridges/Xformers/part_2.html Part 2 of current-transformers

http://www.g3ynh.info/zdocs/bridges/Xformers/part_3.html  And part 3, the last part, of current-transformers

http://www.g3ynh.info/circuits/diode_det/index.html Diode detectors!


Standard Caveat:

As always, I might have made a mistake in my equations, assumptions, drawings, or interpretations.  If you see anything you believe to be in error or if anything is confusing, please feel free to contact me or comment below.

And so I should add -- this design and any associated information is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
